N300PE

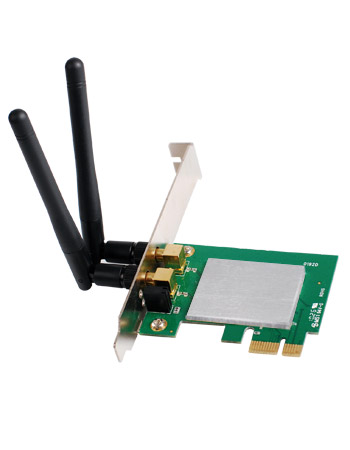

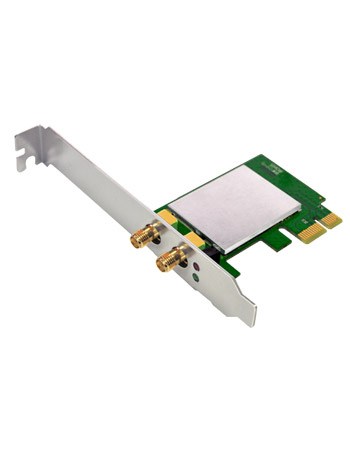

300Mbps Wireless N PCI-E Adapter








  • Overviews
  • Features
  • Design
  • Tech Specs
  • Download
  • FAQs
    • - Complies with IEEE 802.11n/g/b standards for 2.4GHz wireless LAN.
    - Up to 300Mbps high speed transmission rate.
    - Advanced MIMO technology enhances the throughput and wireless coverage.
    - Supports 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES) encryption.
    - Works with all existing network infrastructure.
    - Provides two methods of operation: Infrastructure and Ad-Hoc.
    - Supports Windows 10/8/7/XP/Vista and Linux.- Easy to configure and monitor.
    HARDWARE FEATURES
    Interface  PCI-E
    Antenna  2 *2dBi detachable antennas
    LED Indicators  1* LINK, 1* ACT

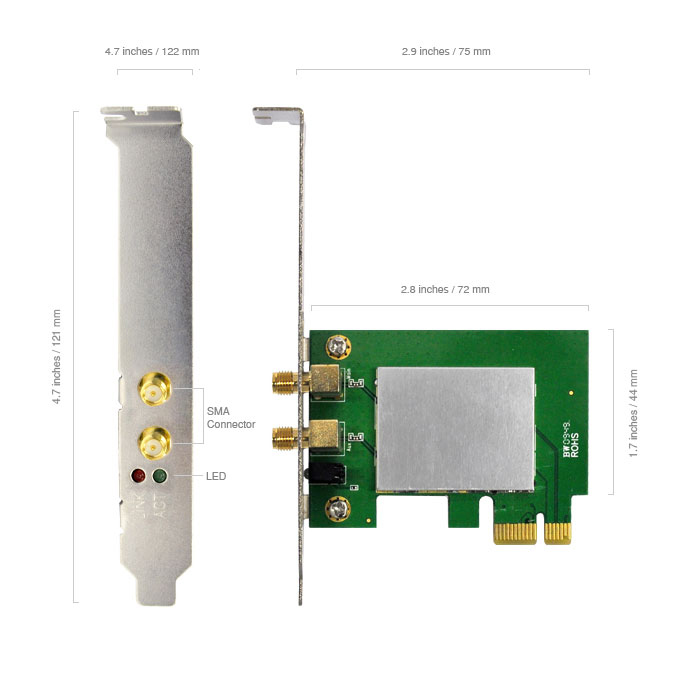

    Dimensions (L x W x H )  2.8 x 2.2 x 0.1 in. (72 x 56 x 1.6mm)
    WIRELESS FEATURES
    Standards  IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
    RF Frequency  2.4~2.4835GHz
    Data Rate  802.11n: up to 300Mbps
      802.11g: up to 54Mbps (dynamic)
      802.11b: up to11Mbps (dynamic)
    Wireless Security  64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
    EIRP  < 20dBm
    Reception Sensitivity  270M: -61 dBm@10% PER
      135M: -65 dBm@10% PER
      54M: -68 dBm@10% PER
      11M: -85 dBm@8% PER
      6M: -88 dBm@10% PER
      1M: -90 dBm@8% PER
    Others  -
    Package Contents  N300PE Wireless Adapter *1
      2dBi antenna *2
      Resource CD *1
      Low Profile Bracket *1
      Quick Installation Guide *1
    System Requirement  Windows 10 (32/64bits), Windows 8 (32/64bits), Windows 7 (32/64bits), Windows XP (32/64bits)
      Linux
    Environment  Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
      Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
      Operating Humidity: 10%~90% non-condensing
      Storage Humidity: 5%~90% non-condensing
