SW24DM

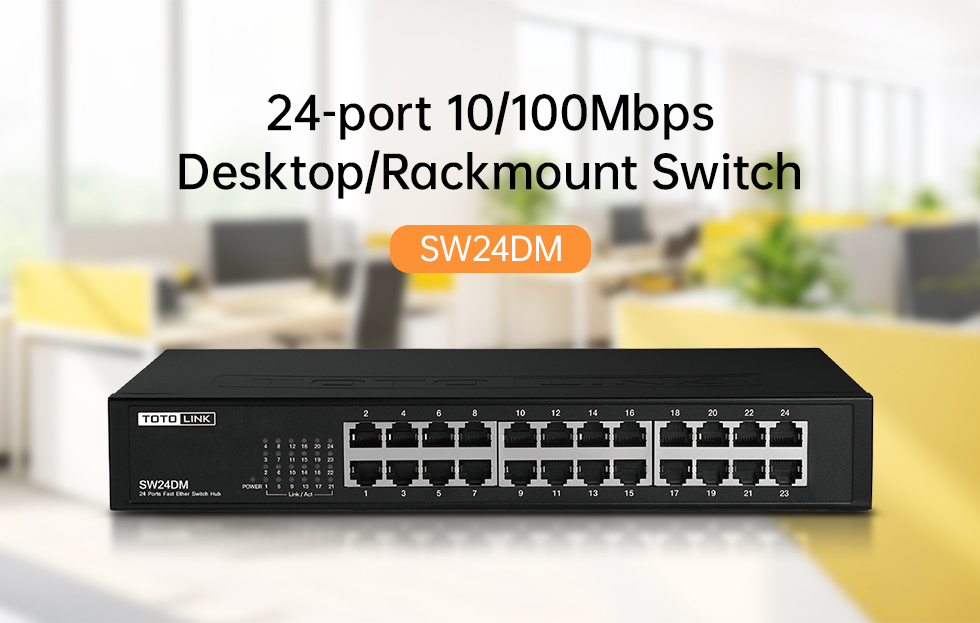

24-port 10/100Mbps Desktop/Rackmount Switch

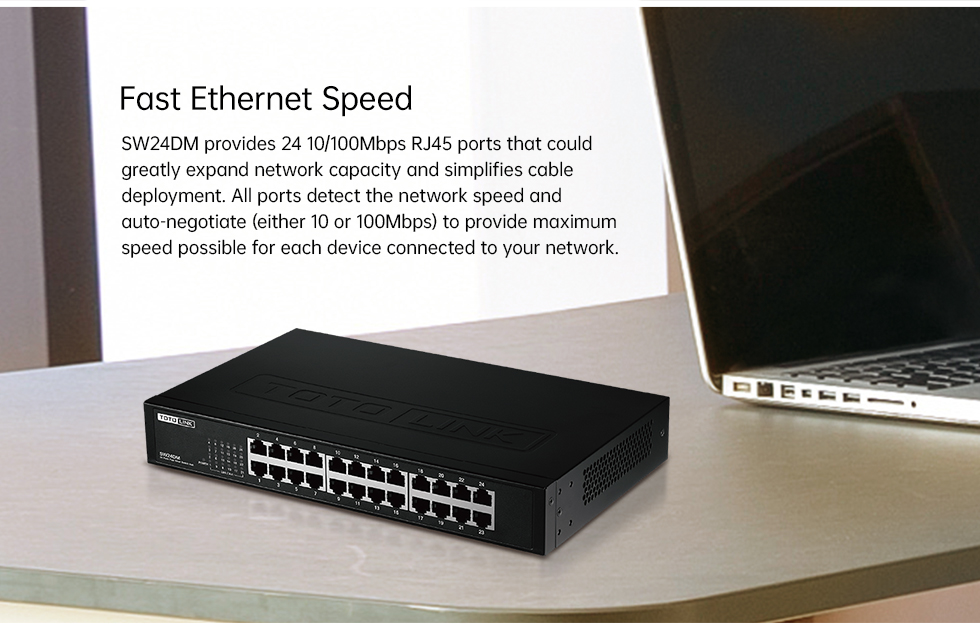

  • - Fast Ethernet Speed

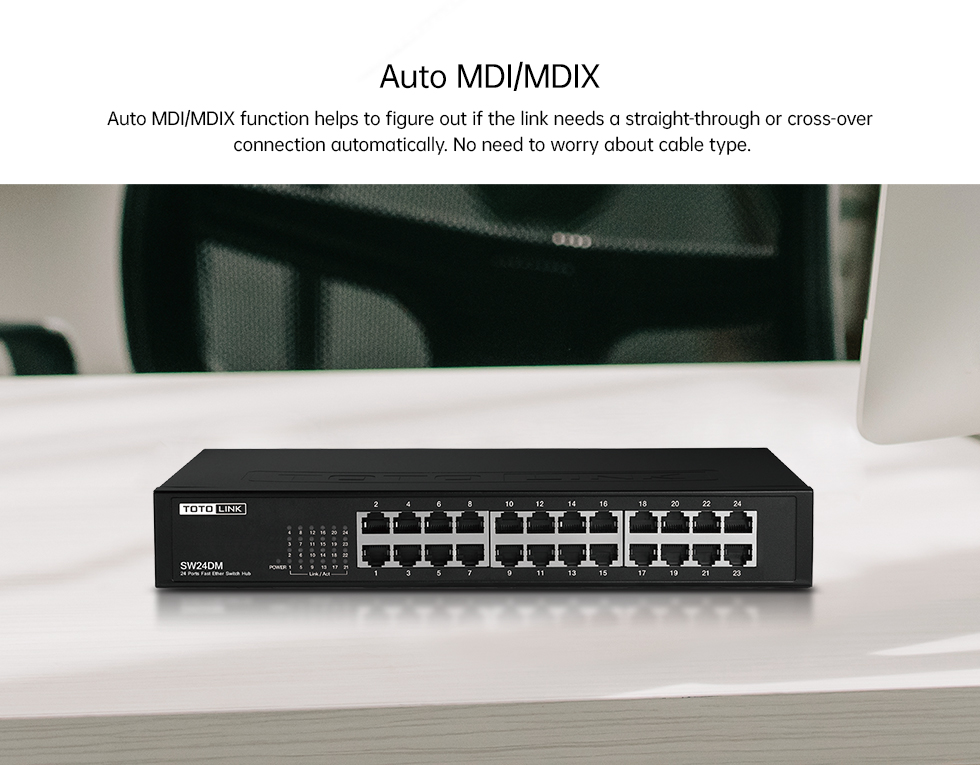

    - Auto MDI/MDIX

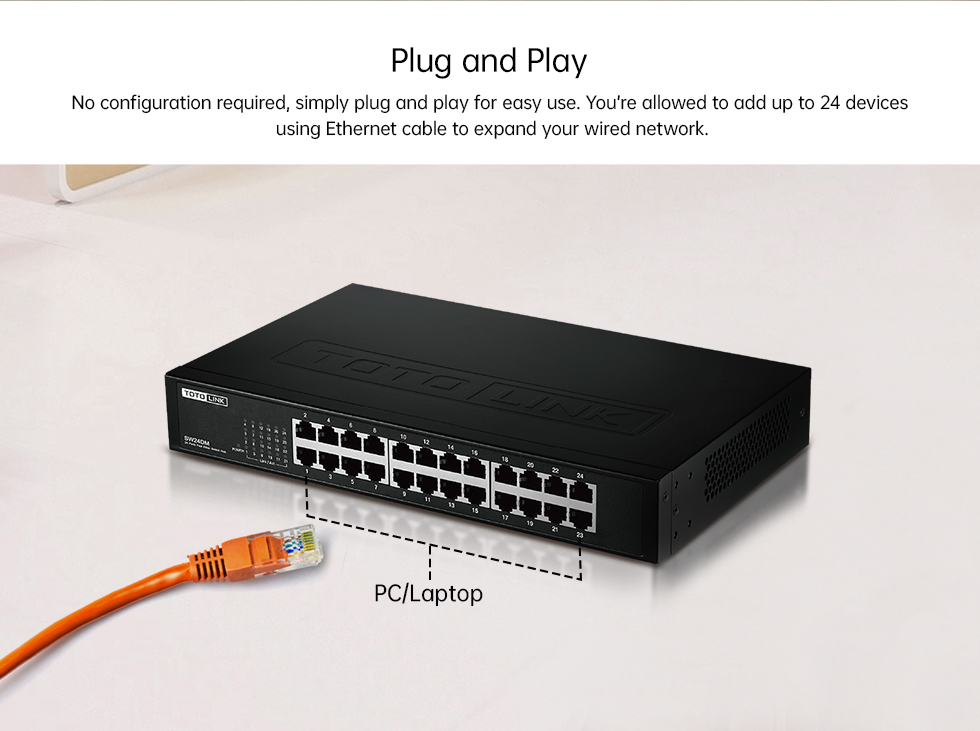

    - Plug and Play

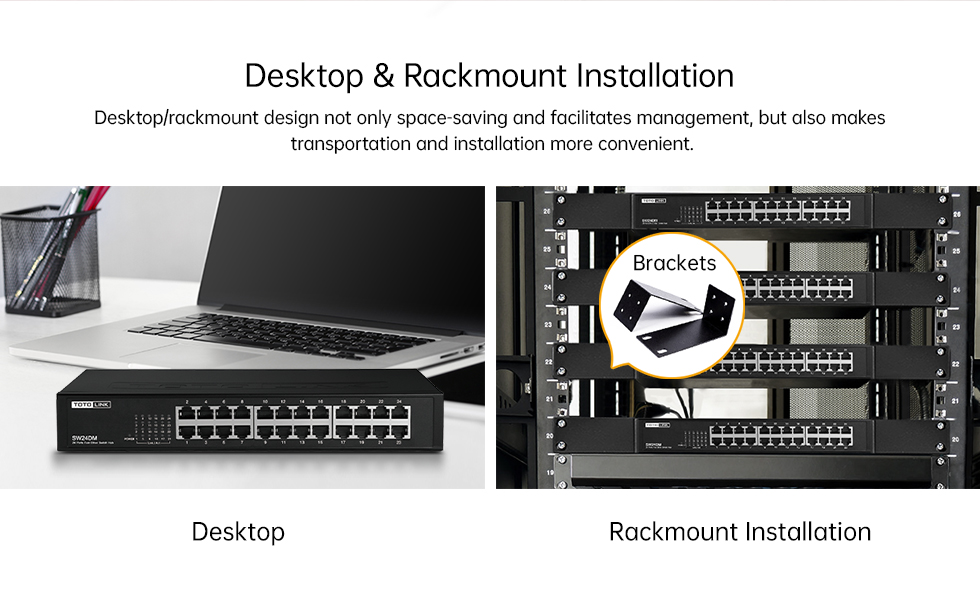

    - Desktop & Rackmount Installation



  • Overviews
  • Features
  • Design
  • Tech Specs
  • Download
  • FAQs
    • - 24 10/100Mbps auto-negotiated RJ45 ports.

    - Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode.

    - 8K entry MAC address table and automatic address learning.

    - Auto-MDI/MDIX eliminates the need for crossover cables.

    - Store-and-Forward switching scheme.

    - Performs non-blocking full wired speed.

    - Plug and Play.

    - Standard 13-inch Desktop/Rackmount Steel Case.
    General
    Standards  - IEEE 802.3, IEEE 802.3u, IEEE 802.3x
    Interface  - 24*10/100Mbps auto-negotiation RJ-45 Ports (Auto MDI/MDIX)
    Power Supply  - 100~240VAC,50/60Hz
    Dimensions(L x W x H)  - 290 x 180 x 45MM
    LED  - 1* Power, 24*LANs
    MAC Address Learning  - Auto-learning, auto-aging
    MAC Address Table  - 8K
    Network Media
    - 10BASE-T: UTP Cat 3 or above cable
    - 100BASE-TX: UTP Cat 5, 5e or above cable
    Backup Bandwidth
    - 4.8Gbps
    Transmission Method
    		 - Store-and-forward
    Others
    Package Contents
    		 - SW24DM Desktop/Rackmount Switch *1
    - Quick Installation Guide *1
    - Power Cable *1
    - Rackmount Brackets *1
    Environment

    		 - Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
    - Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
    - Operating Humidity: 10%~90% non-condensing
    - Storage Humidity: 5%~90% non-condensing
