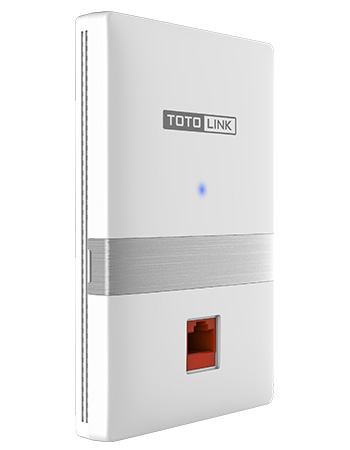

WA1200-PoE

AC1200 Dual Band In-Wall Wireless AP

  • - Sleek and Discreet with In-wall Design
    - 1200Mbps 11AC Dual Band, Ultra-fast Wi-Fi

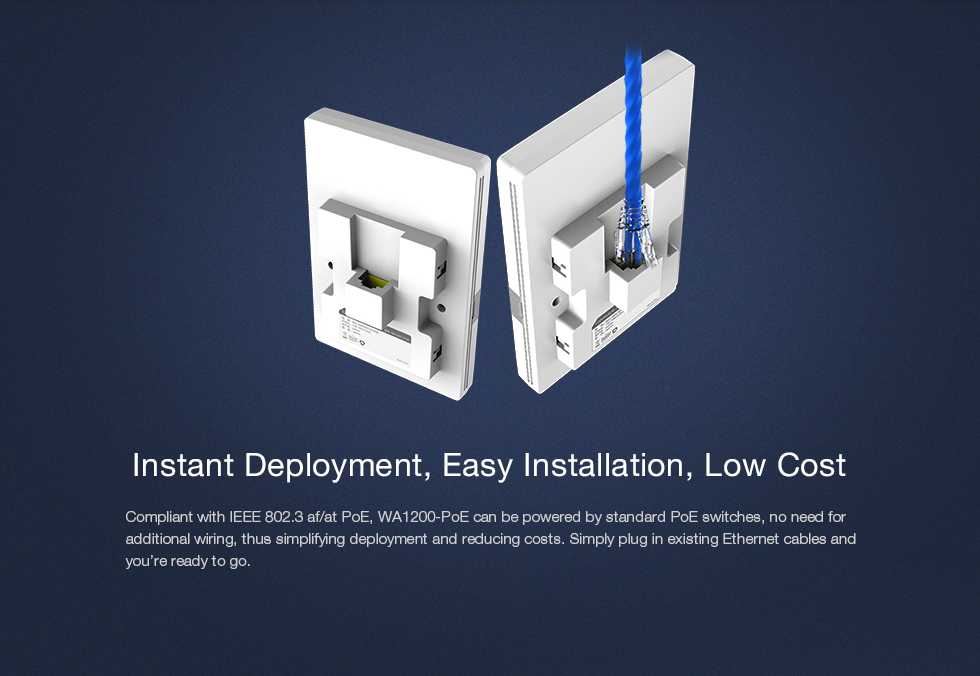

    - Instant Deployment, Easy Installation, Low Cost
    - Wireless Security Blocks Unauthorized Access
    - Flexible Management Options
    - Concurrent Multiple SSIDs

  • - Complies with IEEE 802.11 ac/n/g/b Wi-Fi standards

    - Concurrent 2.4GHz and 5GHz dual band

    - Capable of speeds of up to 1200Mbps

    - Sleek and discreet with in-wall design

    - IEEE 802.3af/at PoE compliant for simple deployment, easy installation, and low cost

    - Supports 64/128-bit WEP, WPA, WPA2 encryption

    - Local device management and remote AC central control are available

    - Multiple SSIDs work together to create separate networks with proper level of access

    - Different modes like Bridge, Repeater and WDS are selectable based on your current environment

    HARDWARE FEATURES
    Standards  IEEE 802.3, IEEE 802.3u, IEEE 802.3af/at
    Interface  1 *10/100Mbps RJ45 LAN Port (Auto MDI/MDIX)
      1 *10/100Mbps RJ45 Uplink/LAN Port (PoE + Auto MDI/MDIX)
    Button  1 *Reset button
    Power Supply  IEEE 802.3af/at PoE compliant
    Antenna  2 * Internal antennas
    LED  1 *SYSTEM LED (two colors)
    Dimensions (W x H x D)  Outside: -130mm x 86mm -5.12’’ x 3.38’’
      Inside: -77mm x 62.5mm x 18.3mm -3.03‘’ x 2.46‘’ x 0.72‘’
    WIRELESS FEATURES
    Standards  IEEE 802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
    RF Frequency  2.4~2.4835GHz - 5.18GHz ~ 5.825GHz
    Data Rate  11ac: up to 867Mbps - 11n: up to 300Mbps
      11g: Up to 54Mbps - 11b: Up to 11Mbps
    EIRP  2.4GHz < 20dBm 5GHz < 20dBm
    Wireless Security  64/128-bit WEP, WPA, WPA2
    Reception Sensitivity  2.4G:
      11b 11M: -81dBm@8% PER
      11g 54M: -68dBm@10% PER
      11n HT20 MCS7: -65dBm@10% PER
      HT40 MCS7: -62dBm@10% PER
      5G:
      11a 54M: -68dBm@10% PER
      11n HT20 MCS7: -65dBm@10% PER
      HT40 MCS7: -62dBm@10% PER
      11ac VHT80 MCS9: -51dBm@10% PER
    SOFTWARE FEATURES
    Status  System Status
    Network  LAN Setting
    Operation Mode  Bridge Mode
    Wireless  Basic Settings
    Management  Administrator Setting
      Time Setting
      Upgrade Firmware
      System Configuration
      System Log
      Reboot Schedule
      Logout
    Others
    Package Contents  AC1200 Dual Band In-Wall Wireless AP * 1
      Quick Installation Guide *1
    Environment  Operating Temperature: 0℃~50 ℃ (32 ℉~122℉)
      Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
      Operating Humidity: 10%~90% non-condensing
      Storage Humidity: 5%~90% non-condensing
