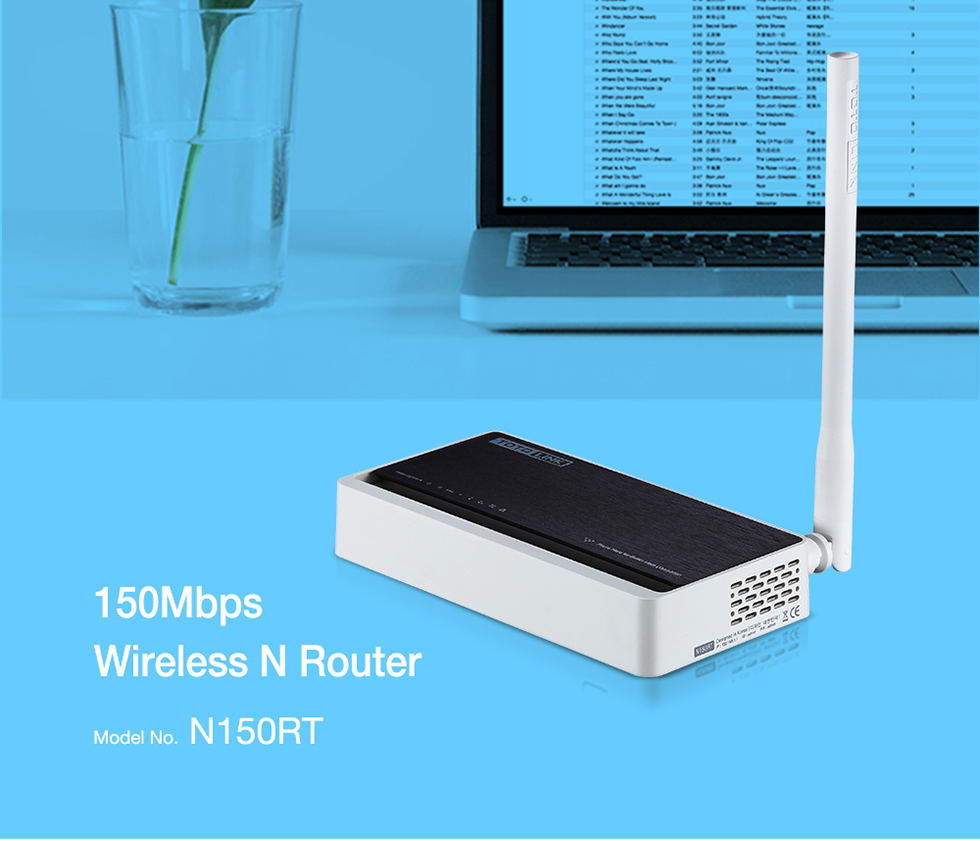

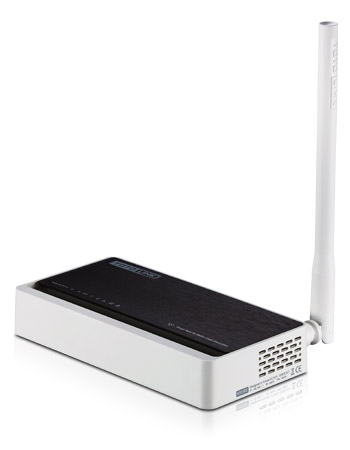

N150RT

150Mbps Wireless N Router

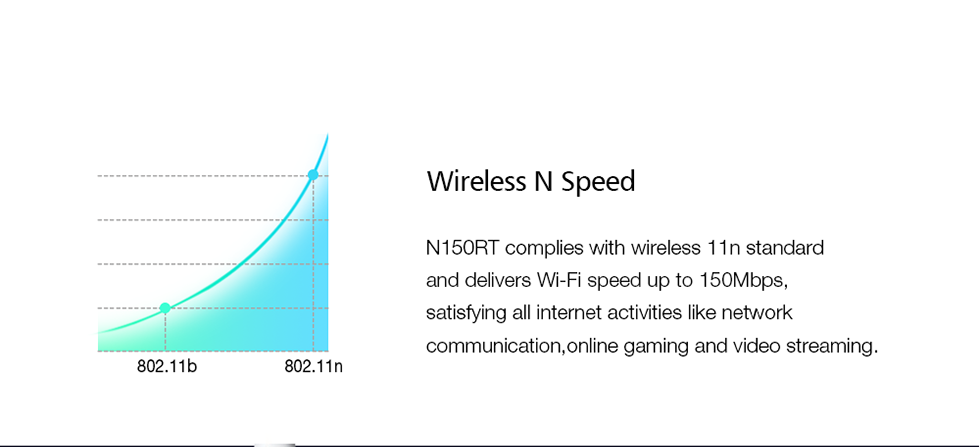

  • - Wireless N Speed

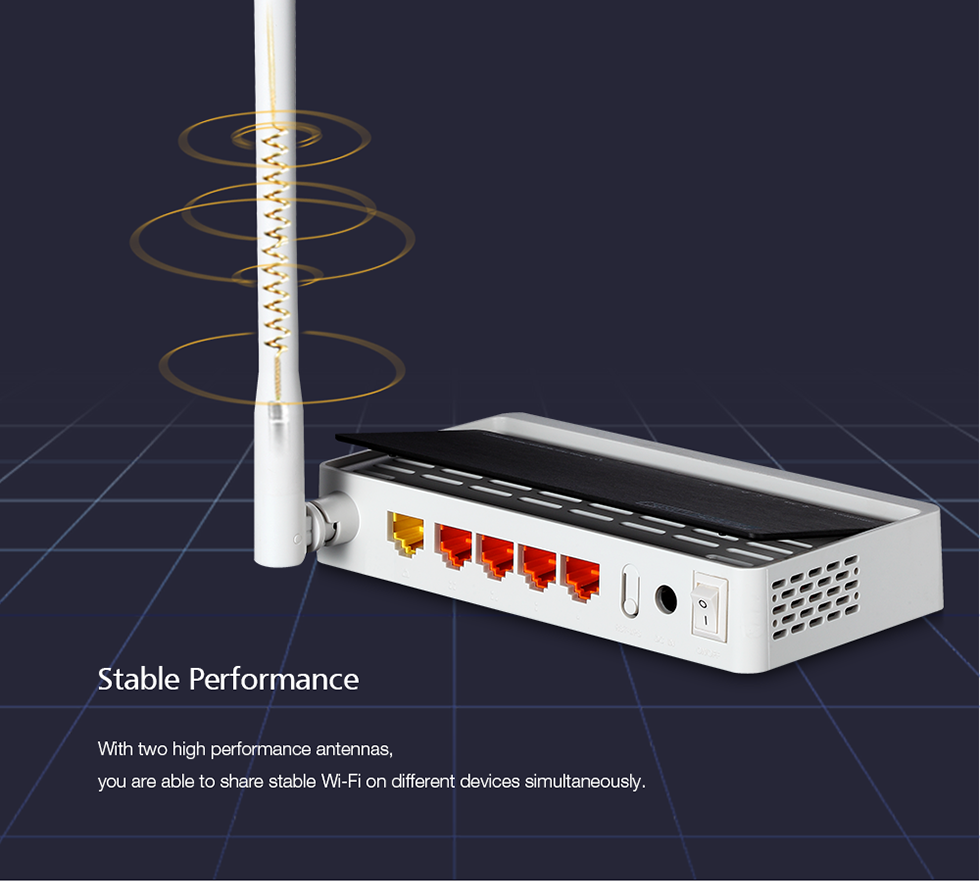

    - Stable Performance
    - Enjoy Your IPTV
    - Easy Setup

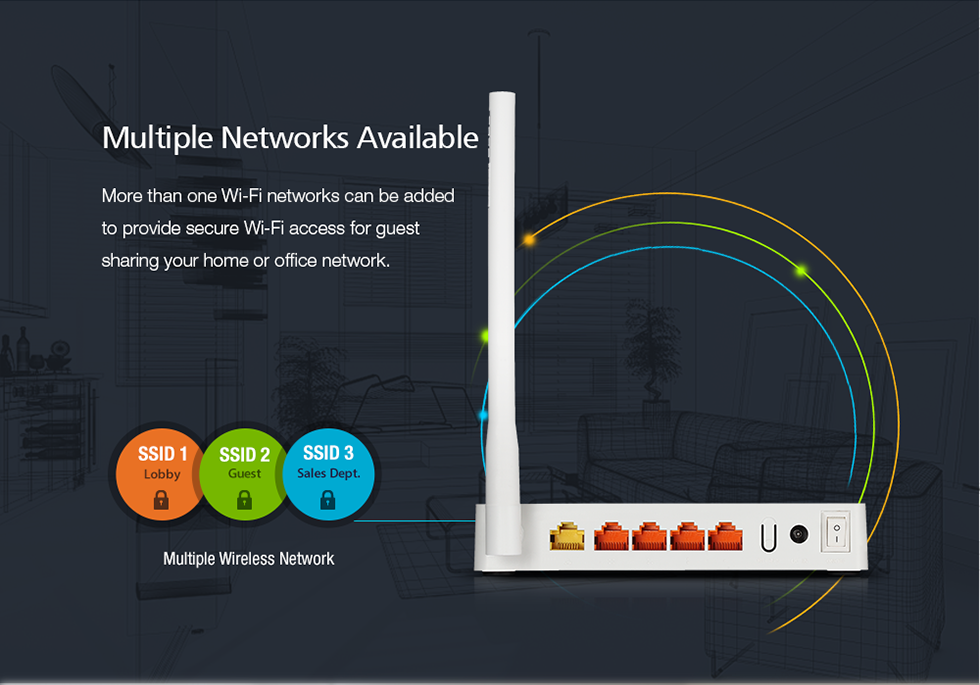

    - Multiple Networks Available
    - Advanced Security
    - Parental Control
    - IPv6 Ready
  • Overviews
  • Features
  • Design
  • Tech Specs
  • Download
  • FAQs
    • - Complies with IEEE 802.11n/g/b standards for 2.4GHz Wireless LAN.
    - Up to 150Mbps data rate for Wi-Fi network.
    - Supports  DHCP, Static IP, PPPoE(dual access), PPTP(dual access), L2TP(dual access) broadband functions.
    - Provides 64/128-bit WEP, WPA, WPA2 and WPA-Mixed security.
    - Connects to secure network easily and fast using WPS.
    - Supports IP, Port, MAC, URL filtering and Port Forwarding.
    - QoS: Bandwidth Control based on IP/MAC.
    - Multi-SSID allows user to create multiple SSIDs according to their needs.
    - Supports VLAN function for IPTV and other internet services.
    - Universal repeater and WDS function for easy Wi-Fi extension.
    - Supports TR-069 protocol for remote centralized management.

    HARDWARE FEATURES

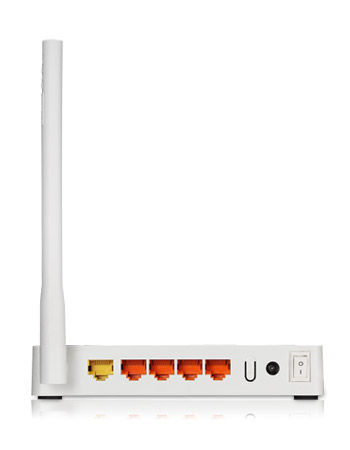

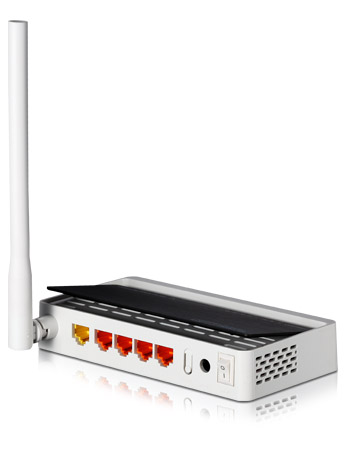

    Interface  4 *10/100Mbps LAN Ports
      1 *10/100Mbps WAN Port
    Power Supply  9V DC/0.5A
    Antenna  1 *5dBi fixed antenna
    Button  1 *RST·WPS Button, 1 *Power ON/OFF Button
    LED Indicators  1 *Power, 1 *CPU, 1 *Wireless, 1 *WAN, 4 *LAN
    Dimensions(L x W x H)  5.8 x 3.0 x 1.0 in. ( 147.5 x 76 x 25 mm)
    WIRELESS FEATURES
    Standards  IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
    RF Frequency  2.4~2.4835GHz
    Data Rate  802.11n: Up to 150Mbps
      802.11g: Up to 54Mbps (dynamic)
      802.11b: Up to11Mbps (dynamic)
    EIRP  < 20dBm
    Wireless Security  64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
    Reception Sensitivity  135M: -65 dBm@10% PER
      54M: -68 dBm@10% PER
      11M: -85 dBm@8% PER
      6M: -88 dBm@10% PER
      1M: -90 dBm@8% PER
    SOFTWARE FEATURES
    Operation Mode  Wireless ISP Client Router
      Wireless Client
      Repeater(Range Extender)
      Router
      Bridge with AP
      Client
    Network  VLAN, IPv6
    WAN Type  DHCP/Static IP/PPPoE(dual access)/PPTP(dual access) /L2TP(dual access)
    Wireless Functions  Multiple SSID, MAC Authentication, Universal Repeater, WDS, WPS
    Schedule  Reboot Schedule, Wireless Schedule
    Firewall  MAC Filtering, IP Filtering, Port Filtering, URL Filtering,
    Management  Firmware Upgrade, QoS, TR-069 config, DDNS, Access Control
    Package Contents  N150RT Wireless Router *1
      Power Adapter *1
      Ethernet Cable *1
      Quick Installation Guide *1
    Environment  Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
      Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
      Operating Humidity: 10%~90% non-condensing
      Storage Humidity: 5%~90% non-condensing
