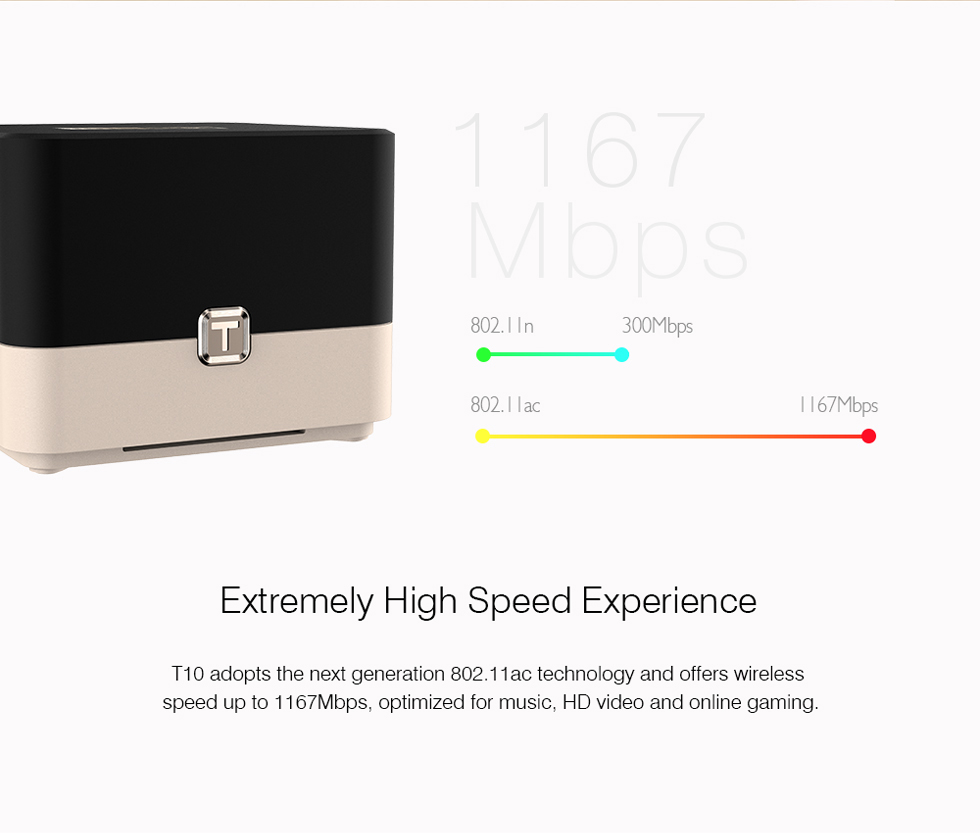

- Complies with the next generation IEEE 802.11ac Wi-Fi standard.

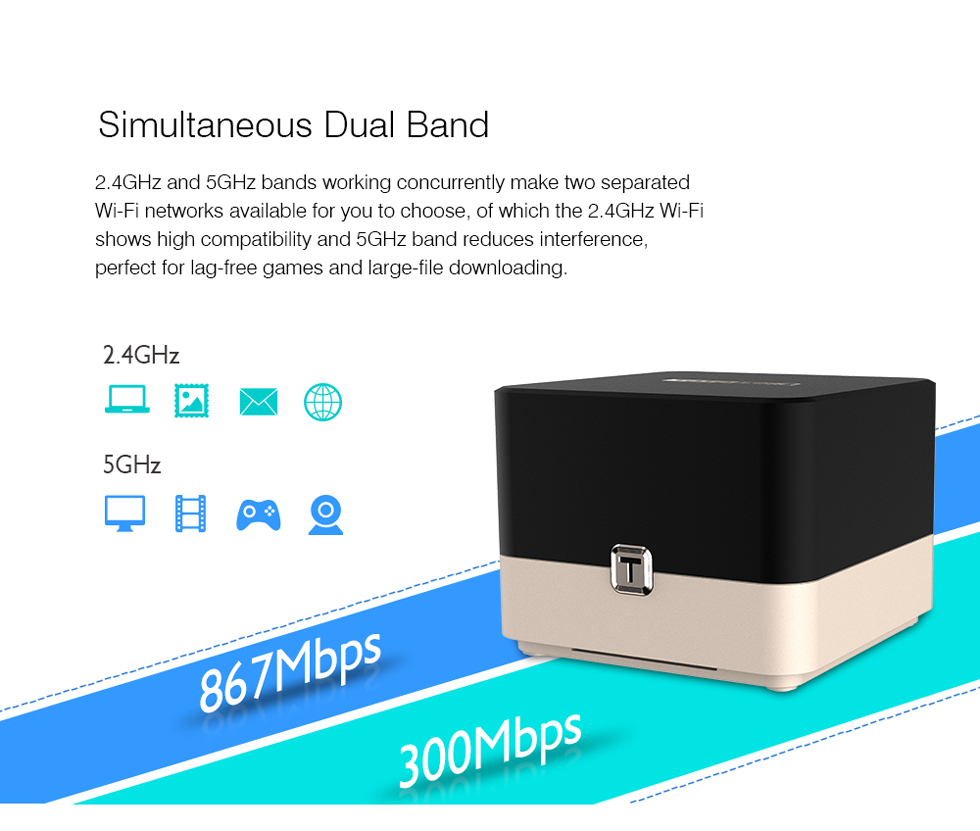

- 867Mbps on 5GHz and 300Mbps on 2.4GHz band for total 1167Mbps simultaneously.

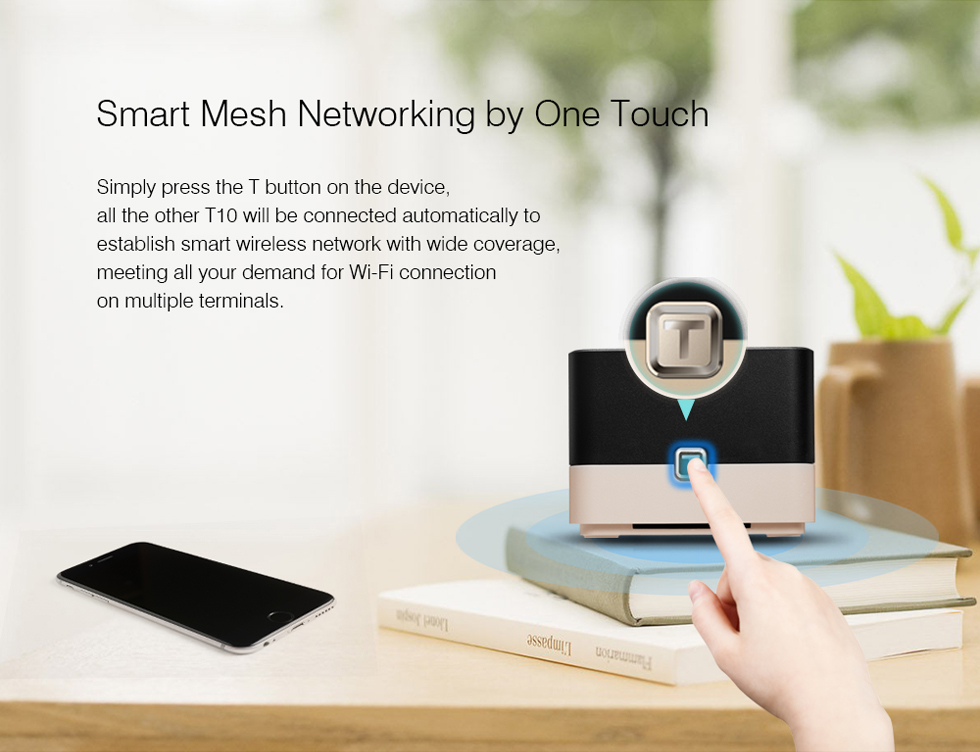

- Smart Mesh networking with one touch.
- Supports multiple devices extension for wide Wi-Fi coverage.

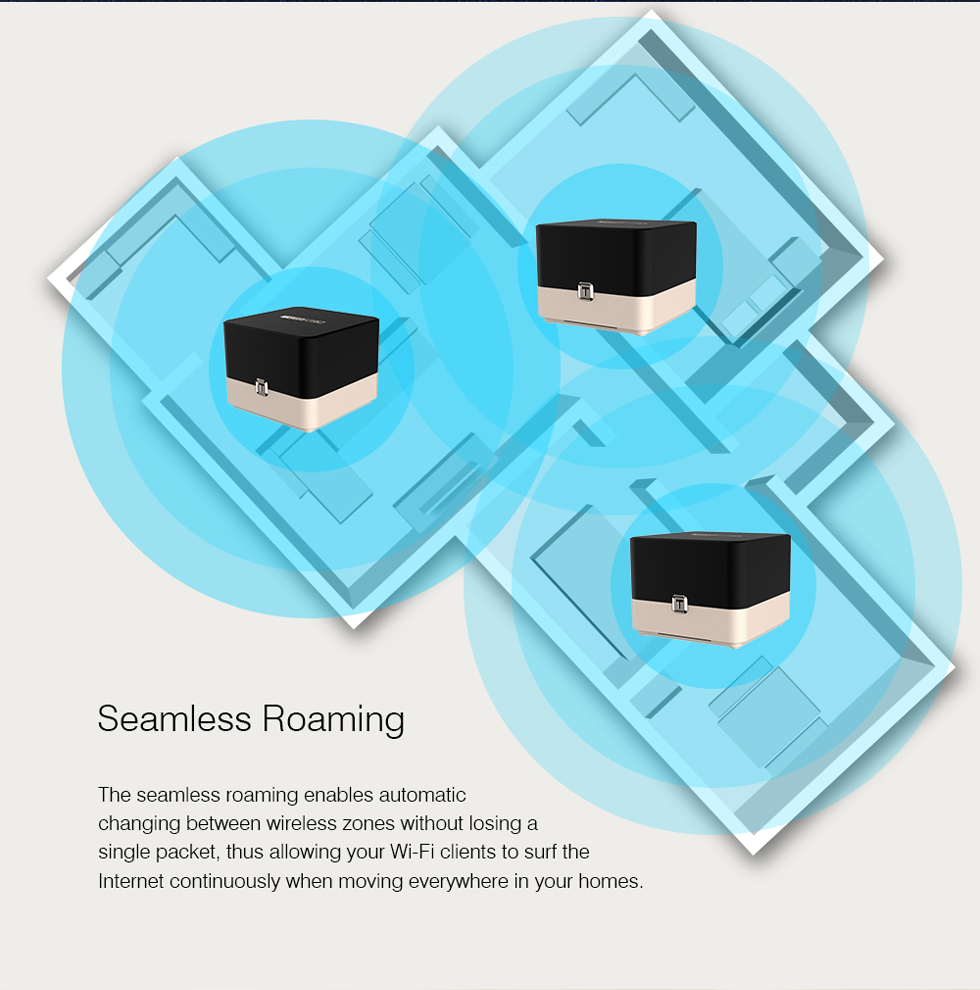

- Wireless roaming helps users auto switch to stronger signal source.

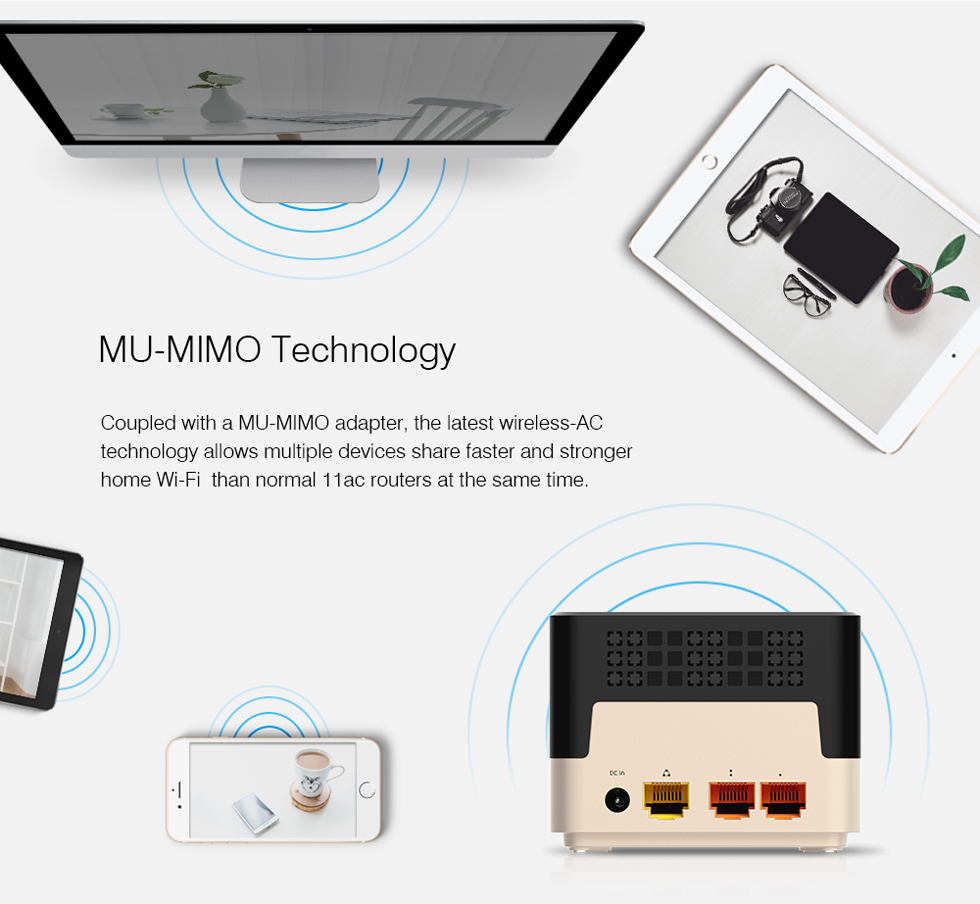

- Next-GEN MU-MIMO technology improves user experience comprehensively.
- 1GHz processor provides powerful performance with low power consumption.

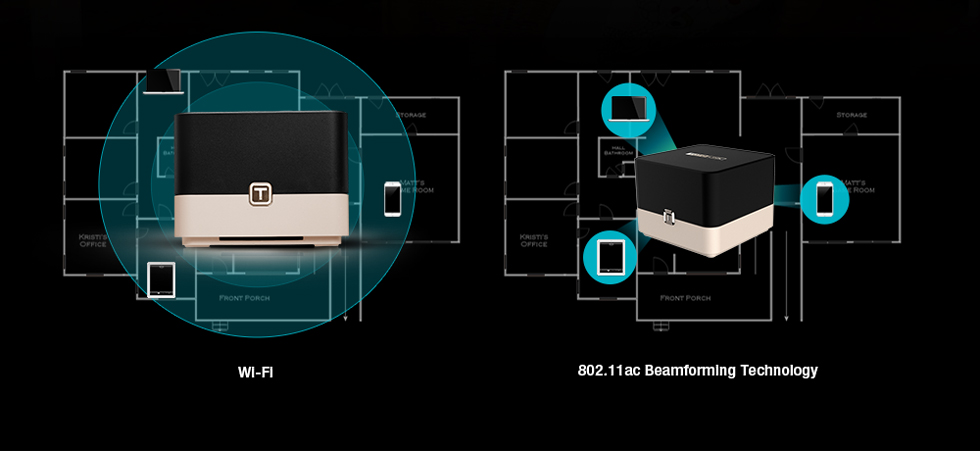

- Intelligent Beamforming delivers highly targeted and
- efficient Wi-Fi connection.

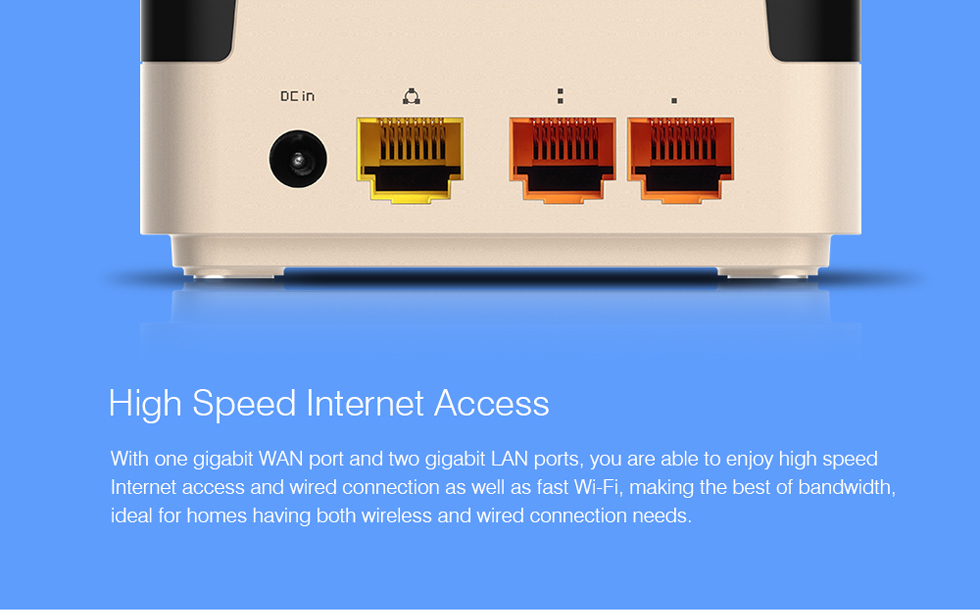

- Full gigabit WAN and LAN ensures high speed Internet access and wired speed.
- Supports DHCP, Static IP and PPPoE broadband functions.
- Provides 64/128-bit WEP, WPA, WPA2 and WPA/WPA2 (TKIP+AES) security.
- Connects to secure network easily and fast using WPS.
- QoS: Bandwidth Control based on IP address.
- Classic black and white design with compact size.
| HARDWARE FEATURES | |
|---|---|

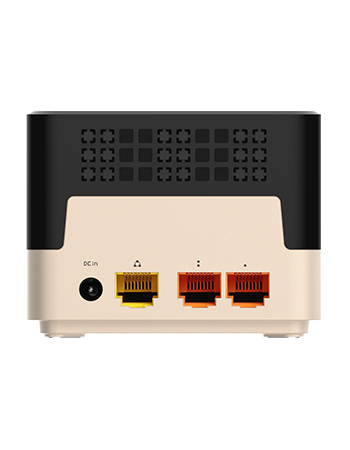

| Interface | 2 *1000Mbps LAN Ports |
| 1 *1000Mbps WAN Port | |
| 1 * USB2.0 Port | |
| Power Supply | 12V DC / 1A |
| Button | 1 *Mesh Button |
| 1* RST Button | |
| LED Indicators | 1 *Status |
| Antenna | Internal Antennas |
| WIRELESS FEATURES | |
|---|---|
| Standards | IEEE 802.11ac, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g ,IEEE 802.11n |
| RF Frequency | 2.4GHz/5GHz |
| Data Rate | 2.4GHz: Up to 300Mbps |
| 5GHz: Up to 867Mbps | |
| EIRP | 2.4GHz < 22dBm |
| 5GHz < 20dBm | |
| Wireless Security | 64/128-bit WEP, WPA, WPA2 and WPA-Mixed |
| Reception Sensitivity | 2.4G: 11b 11M: 20±1.5dBm |
| 11g 54M: 17±1.5dBm | |
| 11n HT20: 16±1.5dBm | |
| HT40: 16±1.5dBm | |
| 5G: 11a 54M: 18±2dBm | |
| 11n HT20 MCS7: 17±2dBm | |
| HT40 MCS7: 17±2dBm | |
| 11ac VHT80 MCS9: 16±2dBm | |
| SOFTWARE FEATURES | |
|---|---|
| Operation Mode | Gateway Mode |
| Bridge Mode | |
| Repeater Mode | |
| WISP Mode | |
| Mesh Mode | |
| WAN Type | DHCP/Static IP/PPPoE |
| Wireless Functions | Multiple SSID, MAC Authentication, Universal Repeater, WDS, WPS |
| Schedule | Reboot Schedule, Wireless Schedule |
| Firewall | MAC Filtering, IP Filtering, Port Filtering, URL Filtering Port Forwarding, DMZ |
| Management | QoS, DDNS, WMM, Access Control, etc. |
| - | - |
| Others | - |
| Package Contents | T10 Wireless Router *1 |
| Power Adapter *1 | |
| Ethernet Cable *1 | |
| Quick Installation Guide *1 | |
| Environment | Operating Temperature: 0℃~50℃ (32 ℉~122℉) |
| Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
