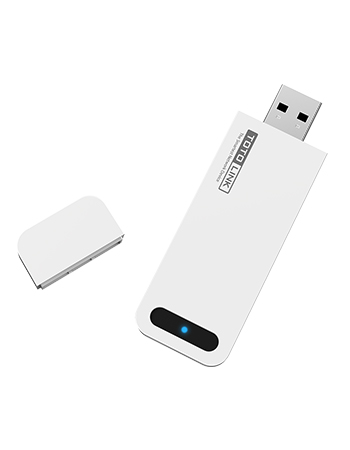

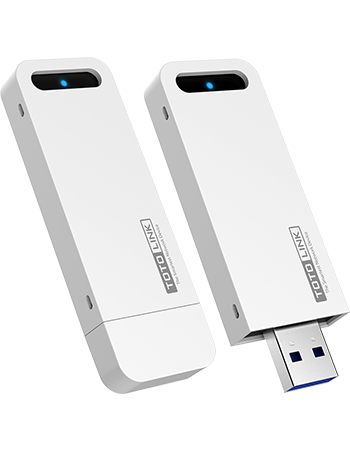

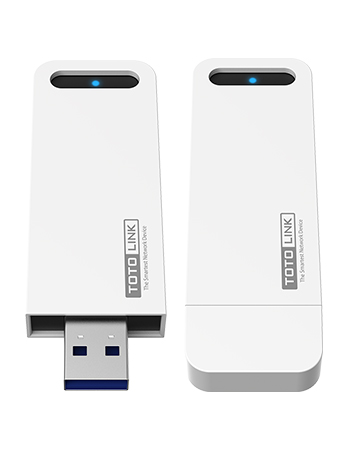

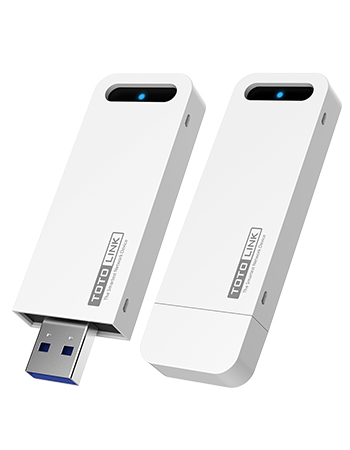

A2000USM

AC1300 Wireless Dual Band USB Adapter

  • - 1300Mbps High Speed
    - 2.4G+5G Dual Band
    - USB3.0 Interface
    - Built-in Antennas

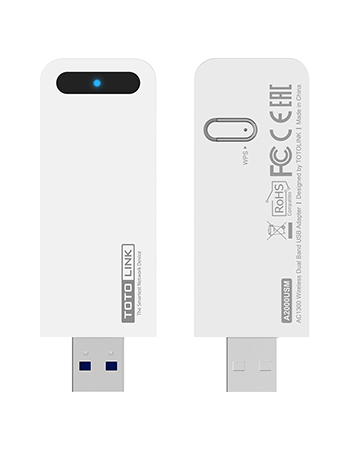

    - WPS Button


  • Overviews
  • Features
  • Design
  • Tech Specs
  • Download
  • FAQs
    • - Complies with IEEE 802.11a/b/g/n/ac standards.

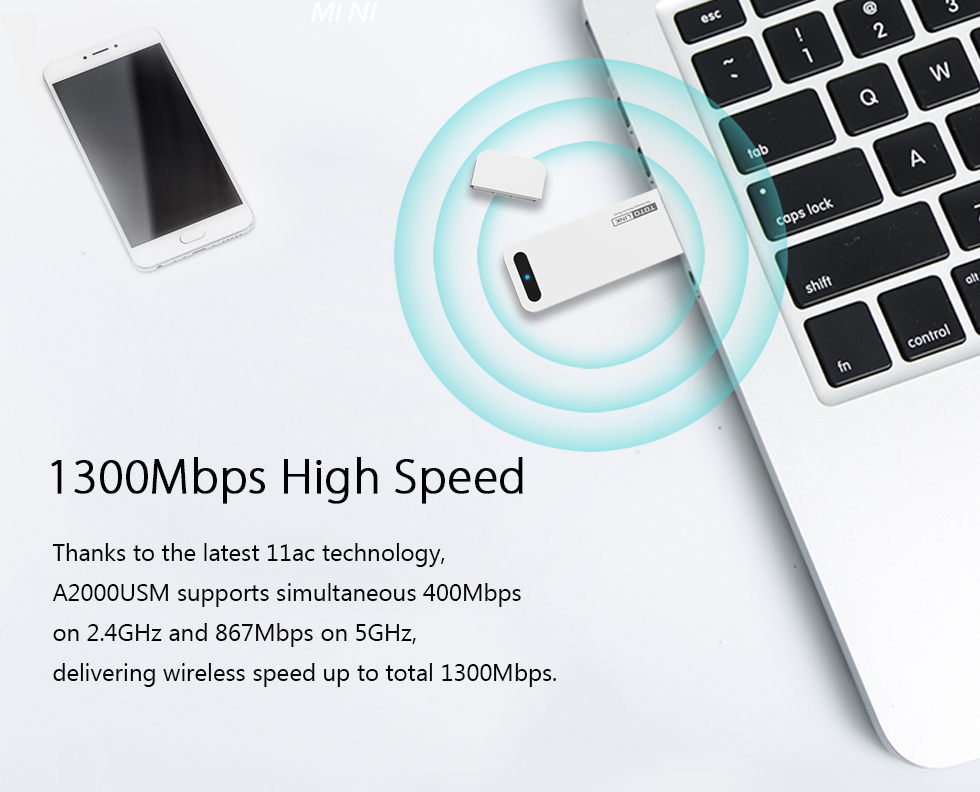

    - Up to total 1300Mbps wireless speed on simultaneous 2.4GHz and 5GHz.
    - Supports 64/128-bit WEP, WPA,WPA2,WPA-PSK, WPA2-PSK encryption.

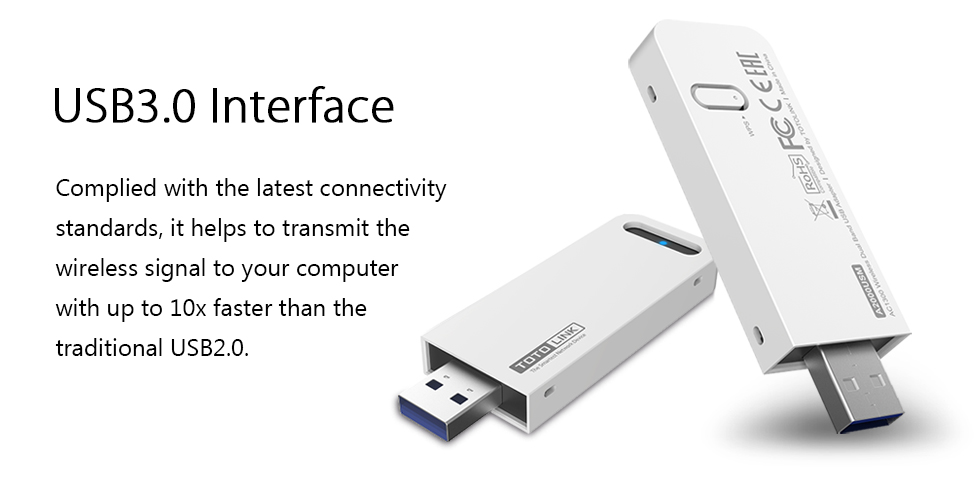

    - USB3.0 enables super-fast data transmission, even 10x faster than the universal USB2.0.
    - Smoothly running on Windows 10/8.1/8/7/ XP(32/64-bit).
    - Built-in antenna, mini size and portable, especially convenient for the travelers.

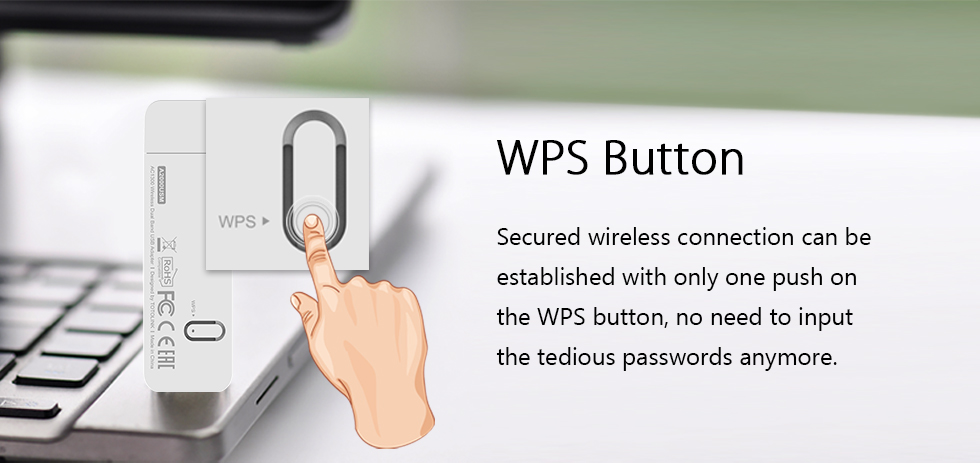

    - Secured wireless connection can be established with only one push on the WPS button.
    HARDWARE FEATURES
    Interface
    - 1* USB 3.0
    LED  Indicator
    - 1 *Wireless(blue color)
    Dimensions(L*W *H)
    - 49 x 20 x 20.5mm
    Antenna  - built-in antennas
    WIRELESS FEATURES
    Standards
    - IEEE 802.11ac, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g ,IEEE 802.11n, IEEE 802.11s
    RF Frequency
    - 2.4~2.4835GHz
    - 5.18~5.825GHz
    Data Rate  - 2.4GHz: 400Mbps
      - 5GHz: 867Mbps
    EVM
    (Error Vector Magnitude)
    - 11g/a: <-25dB; 11n:<-28dB; 11ac<-32dB
    Wireless Security
    - 64/128-bit WEP, WPA, WPA2, WPA-PSK, WPA2-PSK (TKIP/AES)
    Reception Sensitivity

    		 -  2.4G: 11b: 11M 20±1.5dBm；
                11g:  54M 17±1.5dBm；
                11n: MCS7 HT20 16±1.5dBm；
                        MCS7 HT40 16±1.5dBm；
     - 5G:    11ac: MCS9 VHT80 15±2dBm；
                 11a: 54M 17±2dBm；
                 11n: MCS7 HT20 17±2dBm；
                        MCS7 HT40 17±2dBm；
    Others
    Package Contents

    - A2000USM Wireless Adapter *1
    - Installation Guide*1
    System Requirement
    - Windows 10 (32/64bits), Windows 8/8.1 (32/64bits), Windows 7 (32/64bits), Windows XP(32/64bits)
    Environment
    - Operating Temperature: 0℃~50℃ (32 ℉~122℉)
    - Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
    - Operating Humidity: 10%~90% non-condensing
    - Storage Humidity: 5%~90% non-condensing
