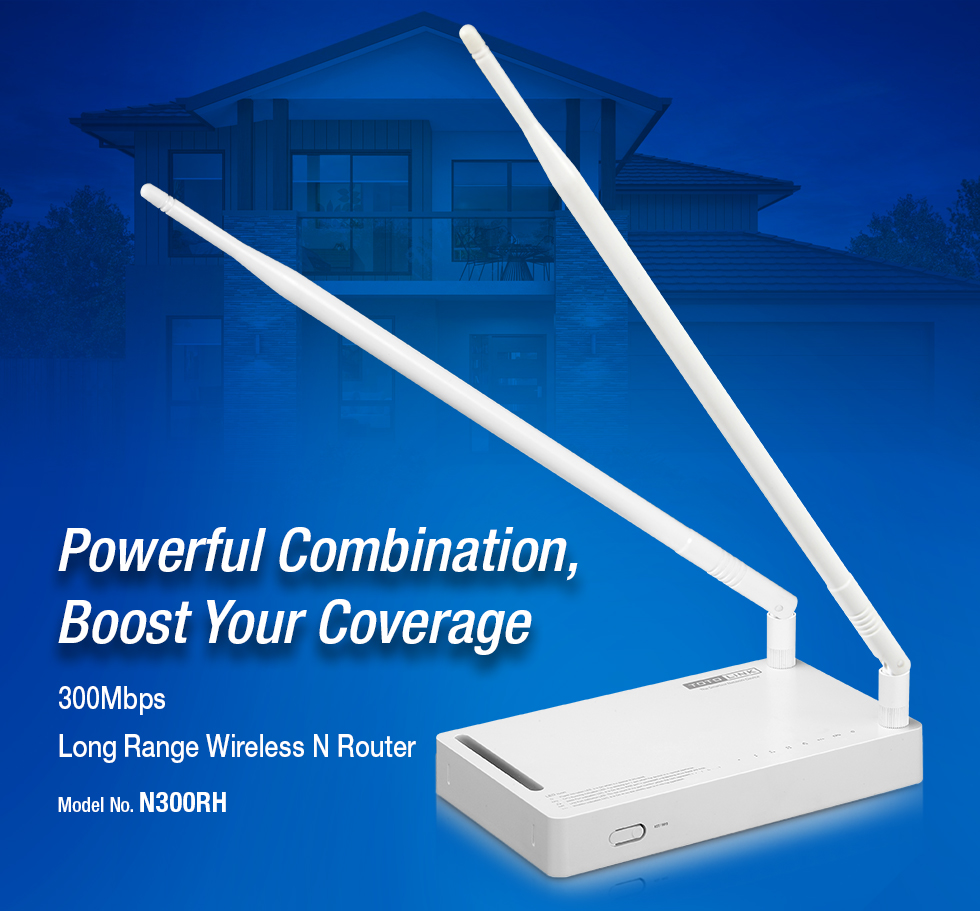

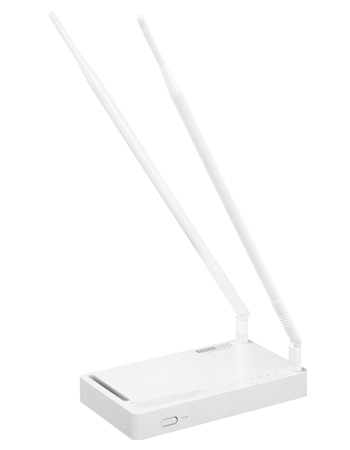

N300RH

300Mbps Long Range Wireless N Router

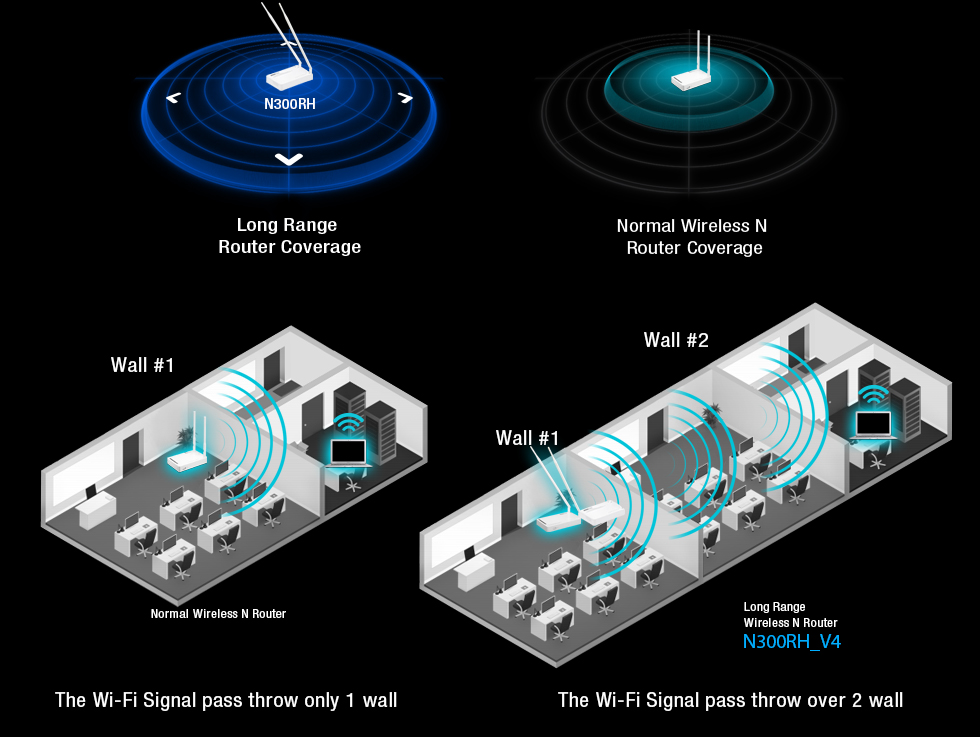

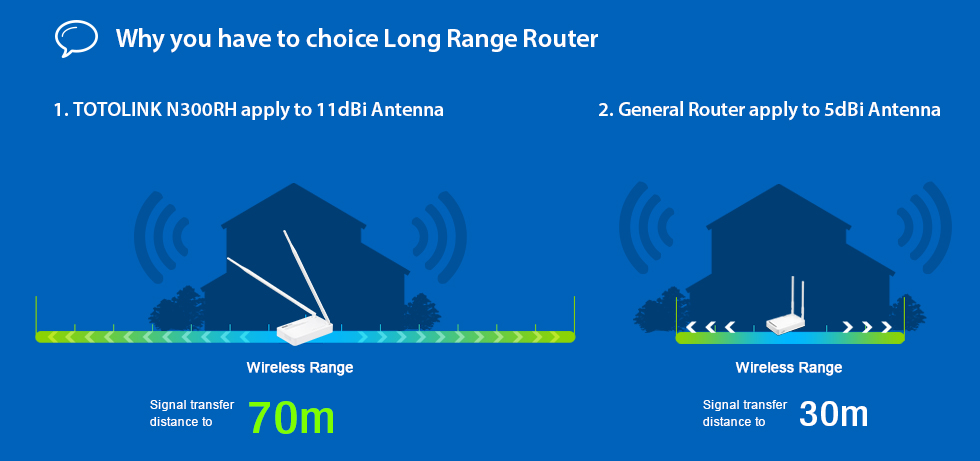

  • -Excellent Wi-Fi Connection over Long Distance

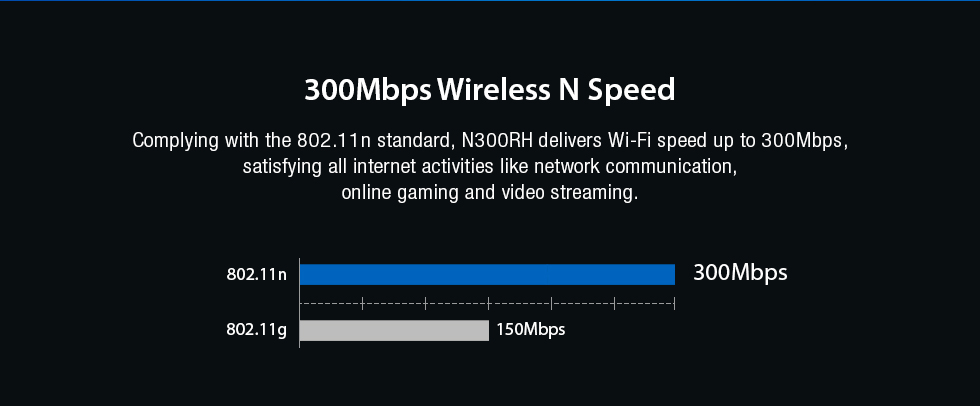

    -300Mbps Wireless N Speed
    -Extensive Wireless Coverage

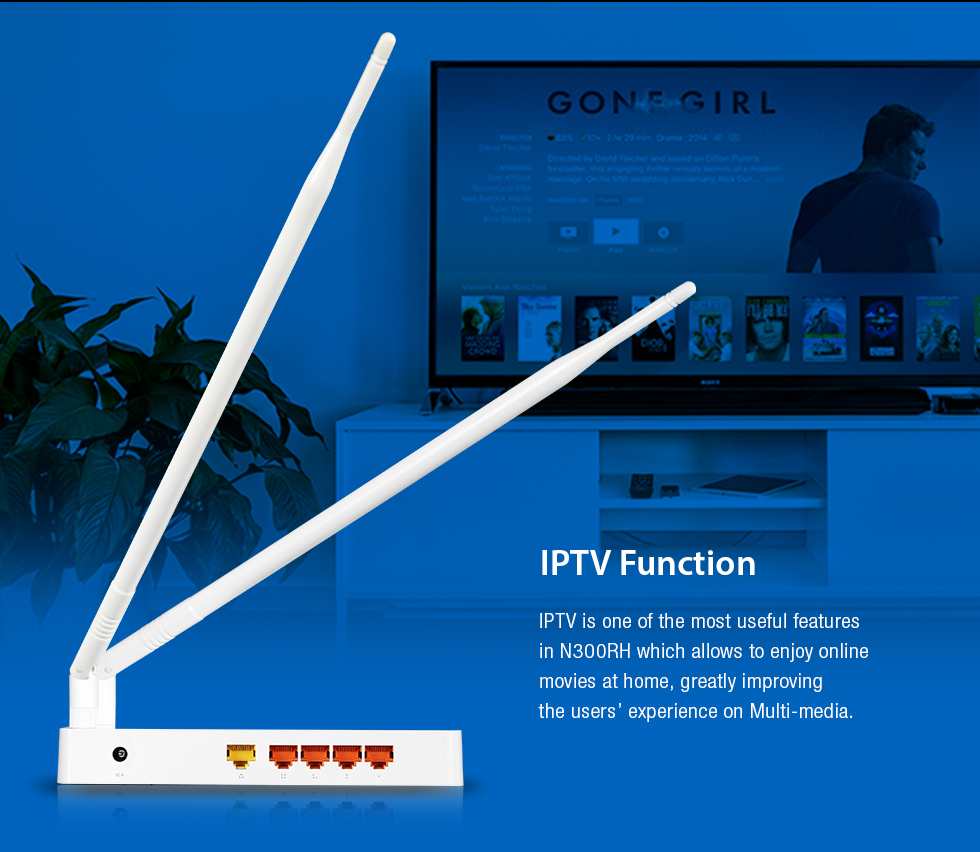

    -Enjoy Your IPTV
    -Multiple Wireless Network for Access Control
    -Flexible Power Supply by Passive PoE
    -Parental Contro

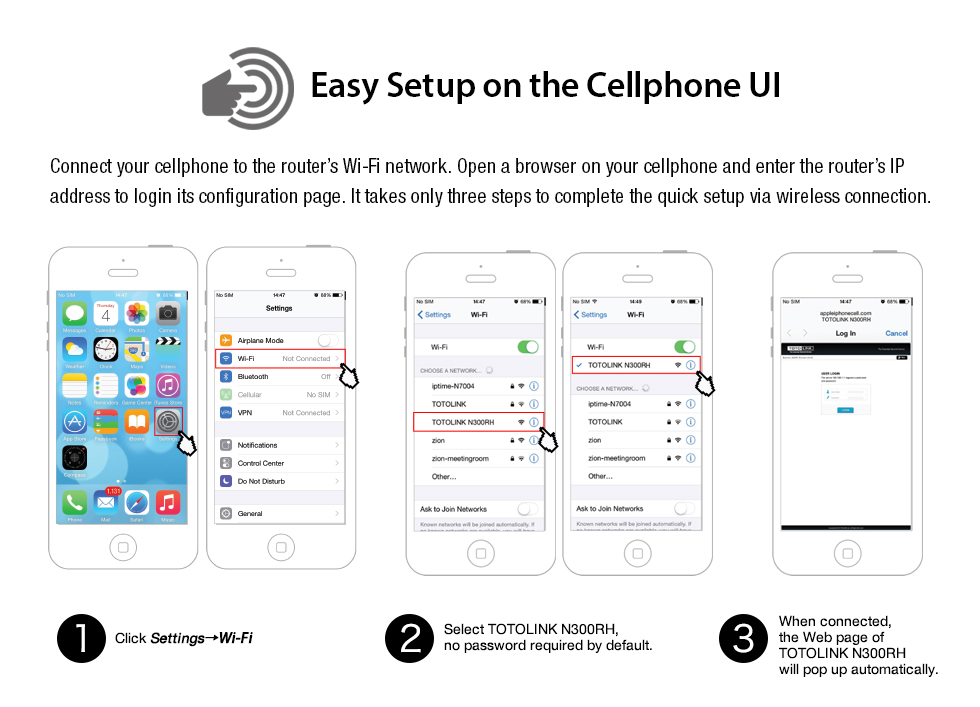

    -Easy Setup
  • Overviews
  • Features

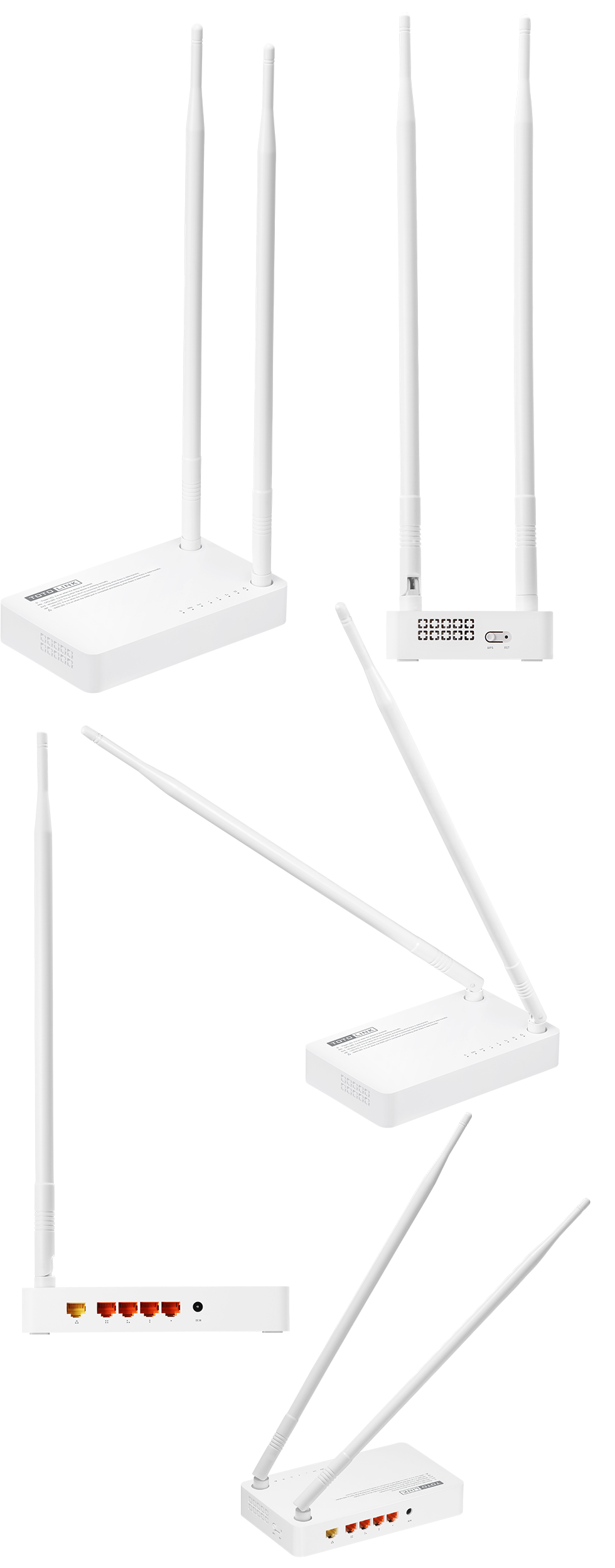

  • Design
  • Tech Specs
  • Download
  • FAQs

    • - Complies with IEEE 802.11n/g/b standards for 2.4GHz Wireless LAN.
    - Up to 300Mbps data rate for Wi-Fi network.
    - Advanced MIMO technology enhances the throughput and wireless coverage.
    - Supports  DHCP, Static IP, PPPoE(dual access), PPTP(dual access), L2TP(dual access) broadband functions.
    - Provides 64/128-bit WEP, WPA, WPA2 and WPA/WPA2 (TKIP+AES) security.
    - Connects to secure network easily and fast using WPS.
    - Supports IP, Port, MAC, URL filtering and Port Forwarding.

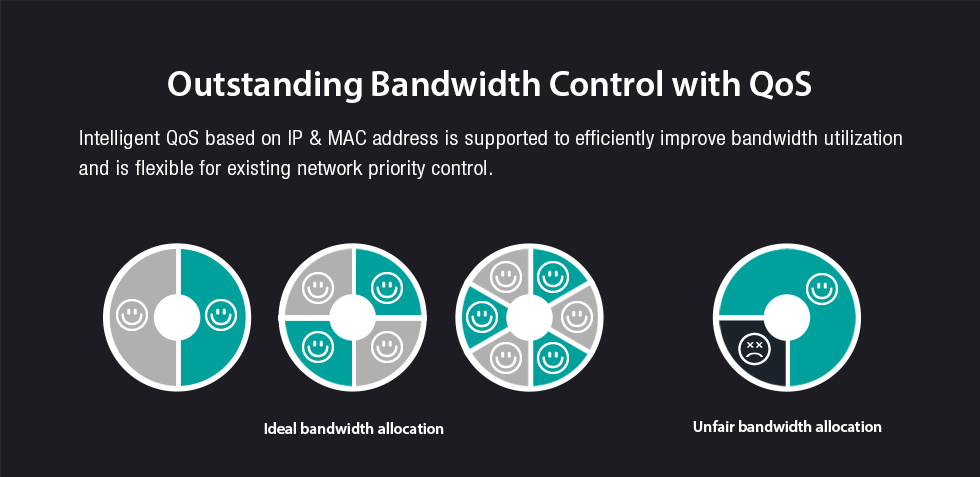

    - QoS: Bandwidth Control based on IP/MAC.
    - Multi-SSID allows user to create multiple SSIDs according to their needs.
    - Supports VLAN function for IPTV and other internet services.
    - Universal repeater and WDS function for easy Wi-Fi extension.
    - SSH Server function ensures the security of remote login.
    - High output power expands the wireless coverage and improve connection stability.
    - Supports TR-069 protocol for remote centralized management.
    - Supports passive PoE power supply.
    HARDWARE FEATURES

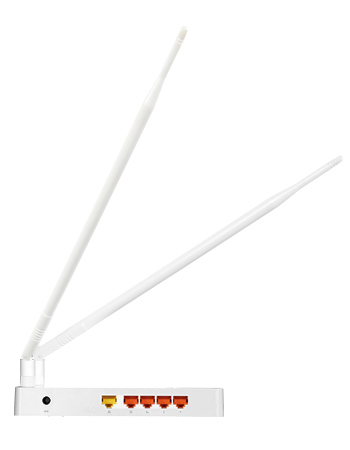

    Interface  4*10/100Mbps LAN Ports
      1*10/100Mbps WAN Port
    Power Supply  12V DC/1A

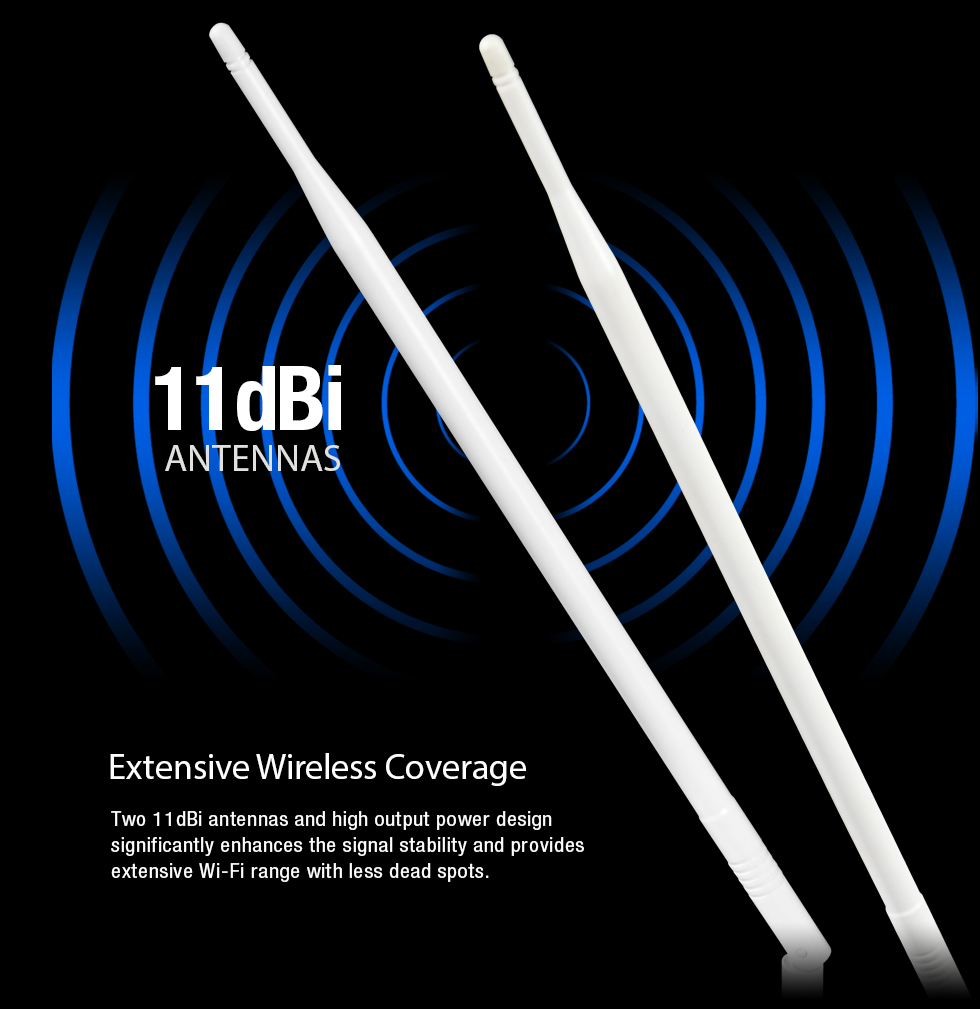

    Antenna  2*11dBi detachable antennas
    Passive PoE  WAN Port & the LAN Port beside the WAN Port Supported
    Button  RST/WPS Button
    LED Indicators  1*Power, 1*CPU, 1*Wireless, 1*WAN, 4*LAN
    Dimensions (L x W x H)  7.1 x 4.2 x 1.0 in. (180 x 106 x 24.5 mm)
    WIRELESS FEATURES
    Standards  IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
    RF Frequency  2.4~2.4835GHz
    Data Rate  802.11n: Up to 300Mbps
      802.11g: Up to 54Mbps (dynamic)
      802.11b: Up to11Mbps (dynamic)
    EIRP  < 20dBm (For countries using CE standard)
      < 27dBm (For countries using FCC standard)
    Wireless Security  64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
    Reception Sensitivity  270M: -61 dBm@10% PER
      135M: -65 dBm@10% PER
      54M: -68 dBm@10% PER
      11M: -85 dBm@8% PER
      6M: -88 dBm@10% PER
      1M: -90 dBm@8% PER
    SOFTWARE FEATURES
    Operation Mode  Wireless ISP Client Router
      Wireless Client
      Repeater(Range Extender)
      Router
      Bridge with AP
      Client
    Network  VLAN, IPv6
    WAN Type  DHCP/Static IP/PPPoE(dual access)/PPTP(dual access) /L2TP (dual access)
    Wireless Functions  Multiple SSID, MAC Authentication, Universal Repeater, WDS, WPS
    Schedule  Reboot Schedule, Wireless Schedule
    Firewall  MAC Filtering, IP Filtering, Port Filtering, URL Filtering, Port Forwarding, DMZ
    Management  Firmware Upgrade, QoS, TR-069 config, DDNS, Access Control, SSH Server
    Package Contents  N300RH Wireless Router *1
      11dBi antennas*2
      Power Adapter *1
      Ethernet Cable *1
      Quick Installation Guide *1
    Environment  Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
      Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
      Operating Humidity: 10%~90% non-condensing
      Storage Humidity: 5%~90% non-condensing
