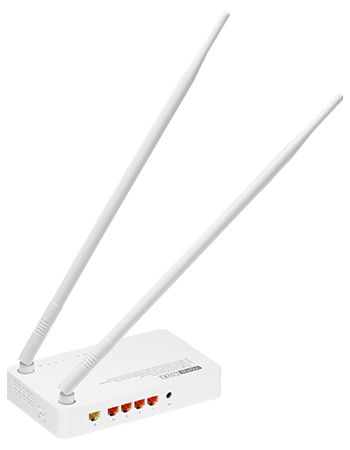

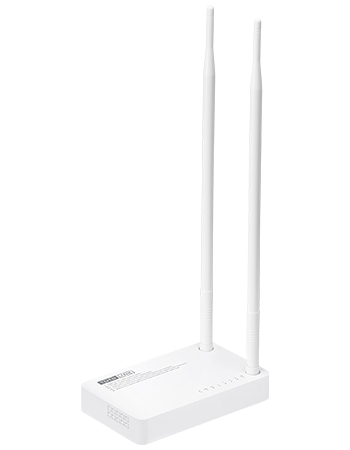

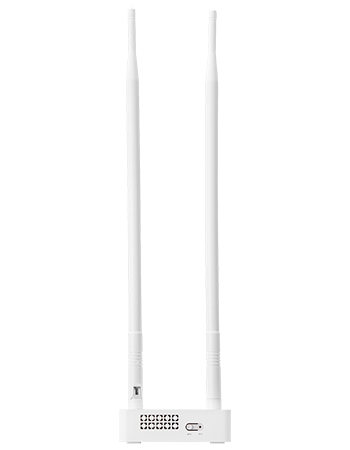

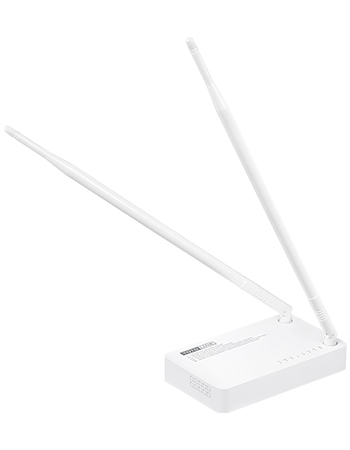

N300RH_V4

300Mbps Long Range Wireless N Router

  • - With Qualcomm Atheros chipsets

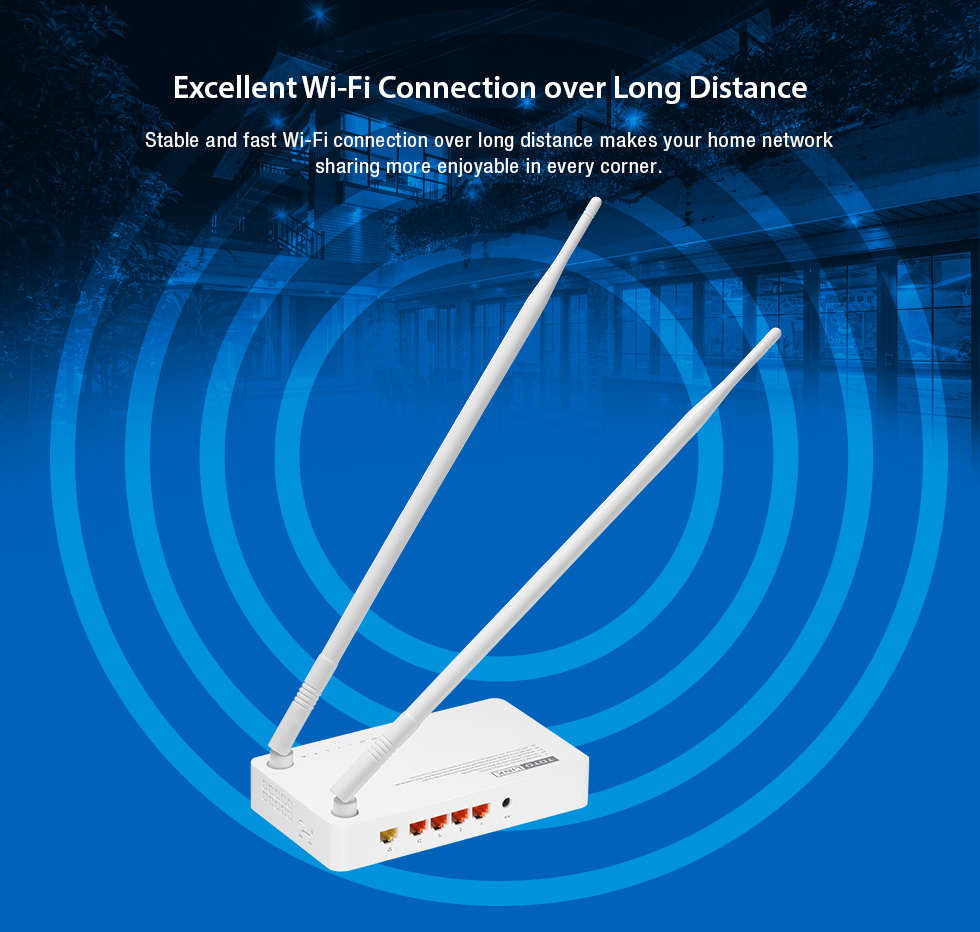

    - Excellent Wi-Fi Connection over Long Distance

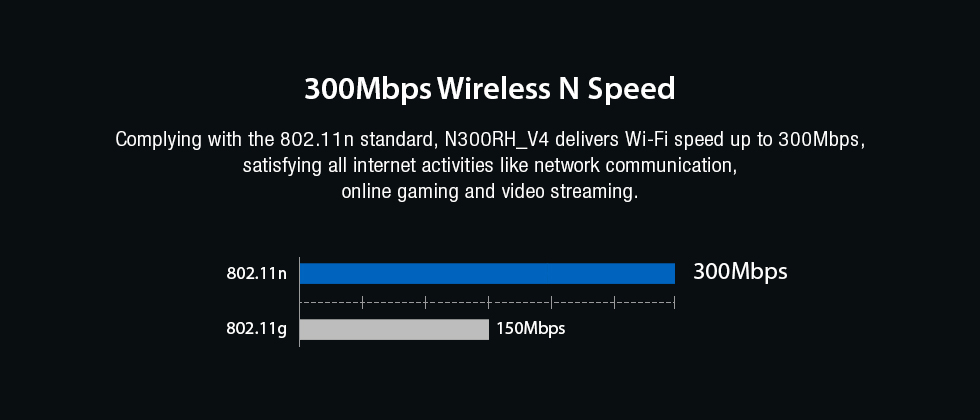

    - 300Mbps Wireless N Speed

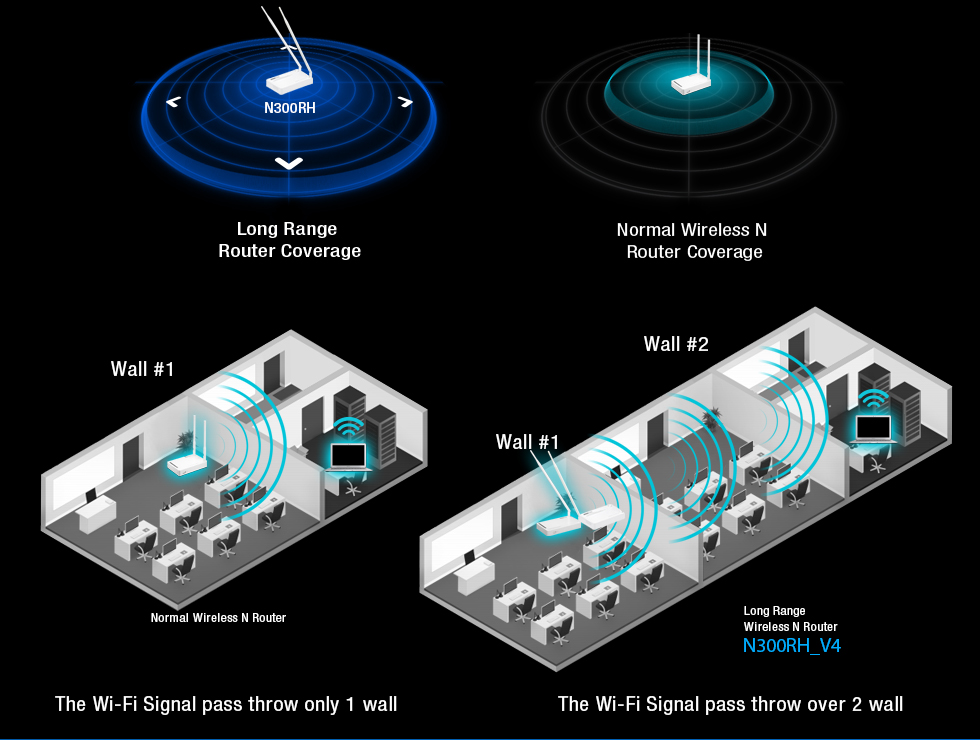

    - Extensive Wireless Coverage
    - Multiple Wireless Network for Access Control
    - IPTV Function
    - Parental Control

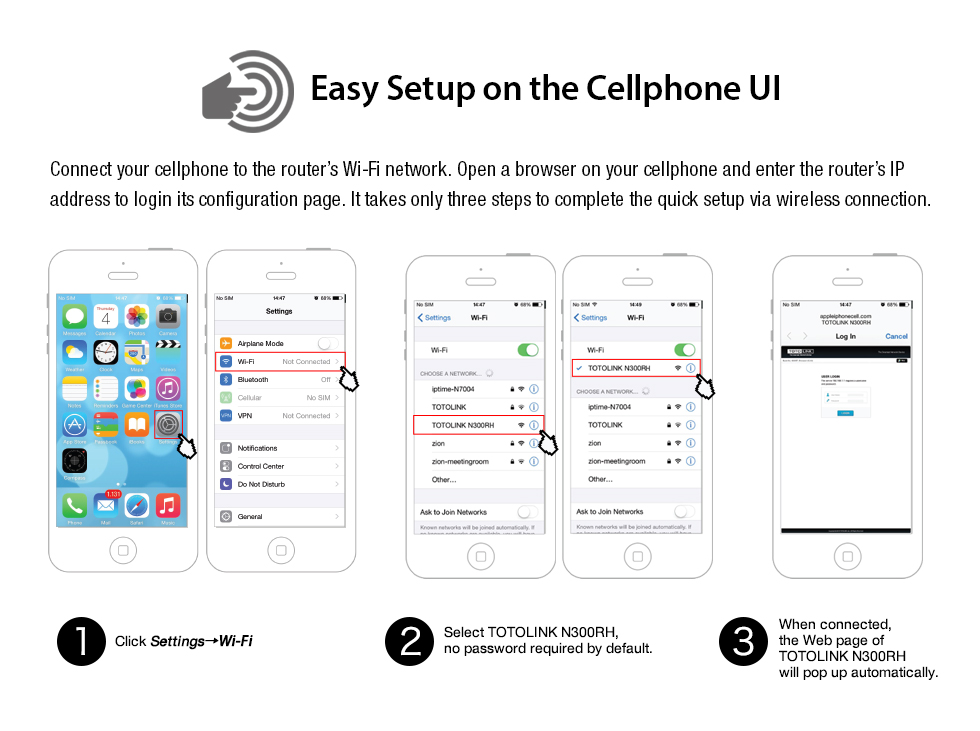

    - Easy Setup on the Cellphone UI
  • Overviews
  • Features
  • Design
  • Tech Specs
  • Download
  • FAQs
    • - Complies with IEEE 802.11n/g/b standards for 2.4GHz Wireless LAN.
    - Up to 300Mbps data rate for Wi-Fi network.
    - Advanced MIMO technology enhances the throughput and wireless coverage.
    - Supports  DHCP, Static IP, PPPoE, PPTP, L2TP broadband functions.
    - Provides 64/128-bit WEP, WPA, WPA2 and WPA/WPA2 (TKIP+AES) security.
    - Connects to secure network easily and fast using WPS.
    - Supports IP, Port, MAC, URL filtering and Port Forwarding.

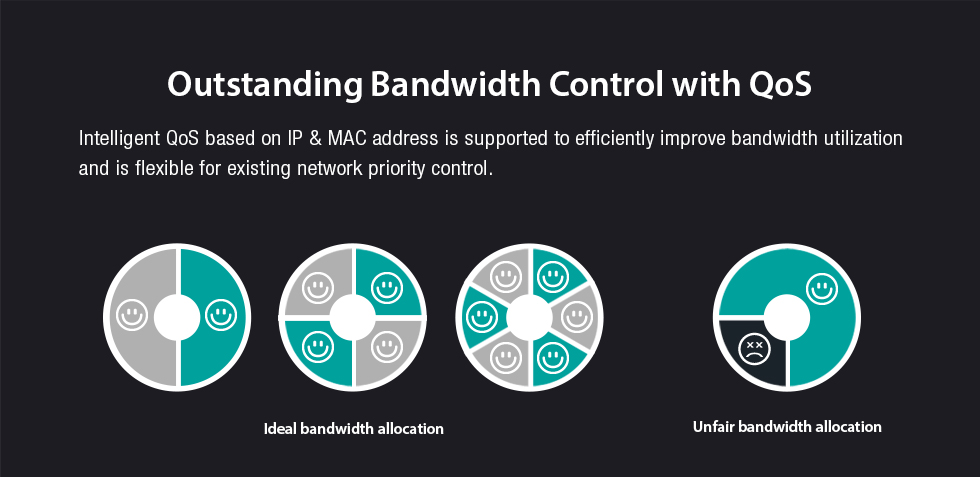

    - QoS: Bandwidth Control based on IP/MAC.
    - Multi-SSID allows user to create multiple SSIDs according to their needs.
    - Supports VLAN function for IPTV and other internet services.
    - Universal repeater and WDS function for easy Wi-Fi extension.
    - High output power expands the wireless coverage and improve connection stability.
    Hardware
    Processor
    - Qualcomm Atheros 560MHz CPU
    Memory
    - 128MB DDR2 RAM, 16MB Flash

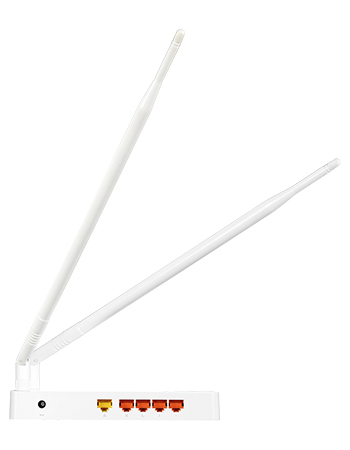

    Interface
    - 4 *100Mbps LAN Ports
    - 1 *100Mbps WAN Port
    Power Supply
    - 12VDC/1A

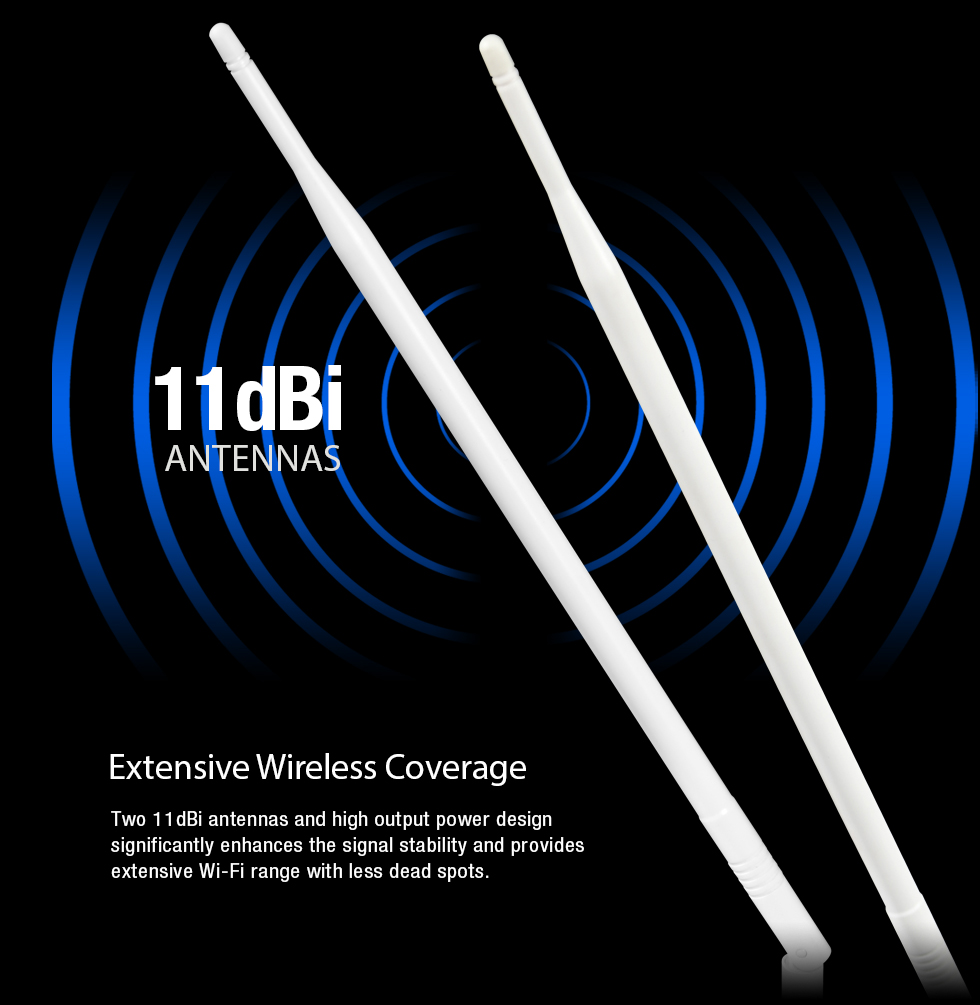

    Antenna

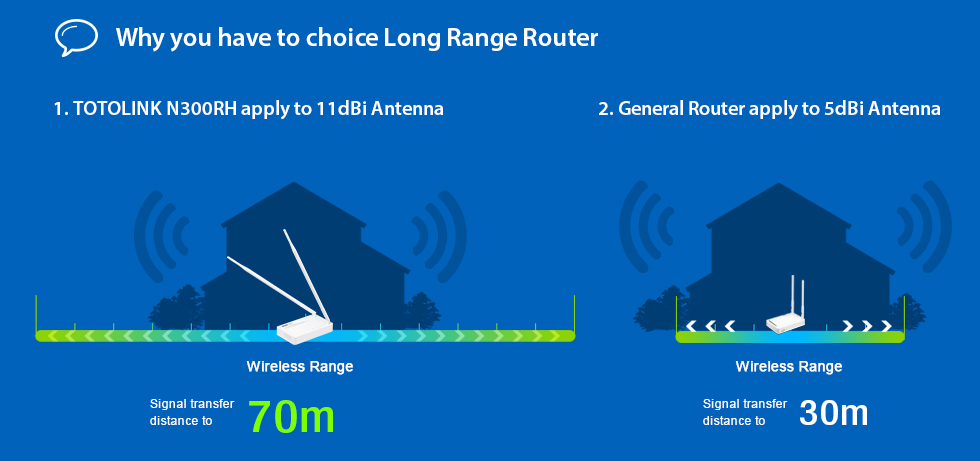

    - 2*11dBi detachable antennas
    Passive PoE
    - WAN Port & the LAN Port beside the WAN Port Supported
    Button
    - 1 *RST Button
    - 1 *WPS Button
    LED Indicators
    - 1*Power, 1*CPU, 1*Wireless, 1*WAN, 4*LAN
    Dimensions (L x W x H)
    - 175 x 102 x 29 mm (not including antennas)
    Wireless
    Standards
    - IEEE 802.11b, IEEE 802.11g ,IEEE 802.11n
    RF Frequency
    - 2.4~2.4835GHz
    Data Rate
    - 802.11n: Up to 300Mbps
    - 802.11g: Up to 54Mbps (dynamic)
    - 802.11b: Up to11Mbps (dynamic)
    EIRP
    < 20dBm (For countries using CE standard)

    < 27dBm (For countries using FCC standard)
    Wireless Security
    - 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
    Reception Sensitivity

    - 270M: -61 dBm@10% PER
    - 135M: -65 dBm@10% PER
    - 54M: -68 dBm@10% PER
    - 11M: -85 dBm@8% PER
    - 6M: -88 dBm@10% PER
    - 1M: -90 dBm@8% PER
    Software
    Operation Mode
    - Gateway Mode
    - Repeater Mode
    - Bridge Mode
    - WISP Mode
    Network
    - Static DHCP Setting, IPTV
    WAN Type
    - DHCP/Static IP/PPPoE/PPTP /L2TP
    Wireless Functions
    - Multiple SSID,
    - MAC Authentication,
    - WDS,
    - WPS,
    - WMM
    Schedule
    - Reboot Schedule,
    - Wireless Schedule
    QoS
    - QoS Setup,
    - Connect Limit Control
    Firewall
    - MAC Filtering,
    - IP Filtering,
    - Port Filtering,
    - URL Filtering
    - Port Forwarding,
    - DMZ
    Management


    - Administrator Setting,
    - Time Setting,
    - DDNS,
    - Remote Management,
    - UPnP,
    - Upgrade Firmware,
    - System Configuration,
    - System Log, and more

    Others
    Package Contents

    - N300RH_V4 Wireless Router *1
    - Detachable antenna*2
    - Power Adapter *1
    - Ethernet Cable *1
    - Quick Installation Guide *1
    Environment
    - Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
    - Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
    - Operating Humidity: 10%~90% non-condensing
    - Storage Humidity: 5%~90% non-condensing
