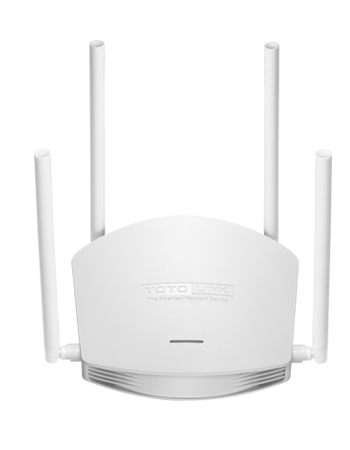

N600R

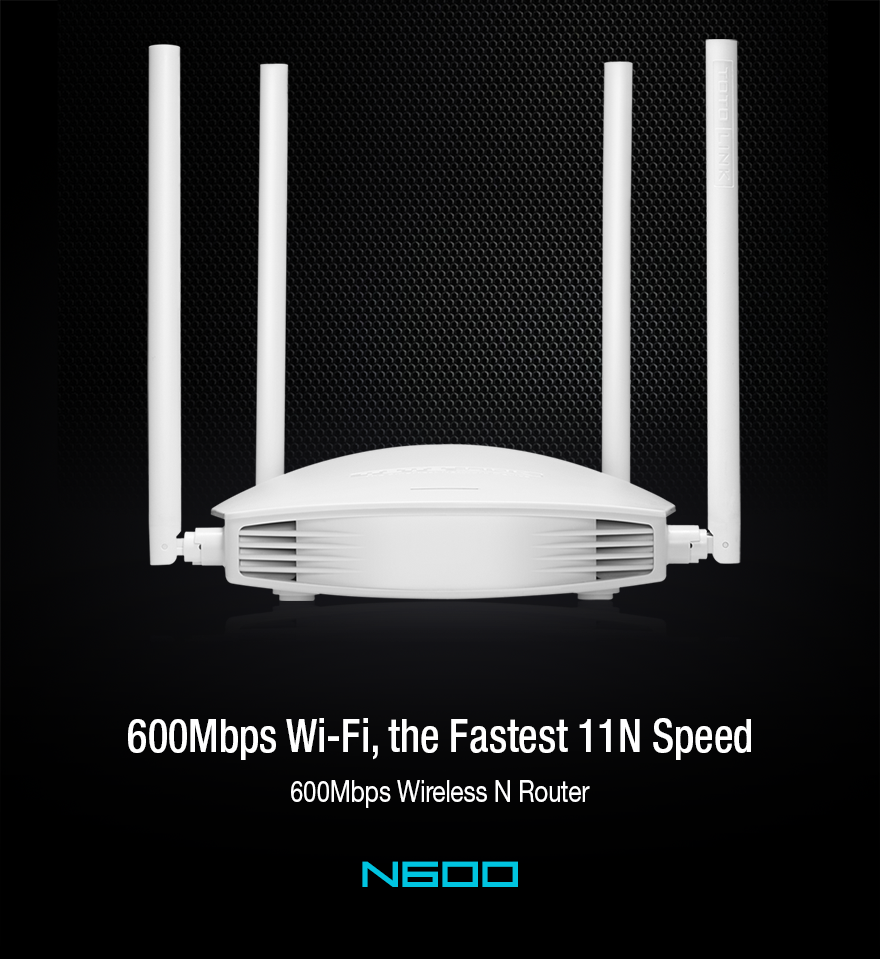

600Mbps Wireless N Router

  • - Parental Control
    - Advanced Security
    - Multiple Wireless Networks for Access Control
    - Outstanding Bandwidth Control with QoS

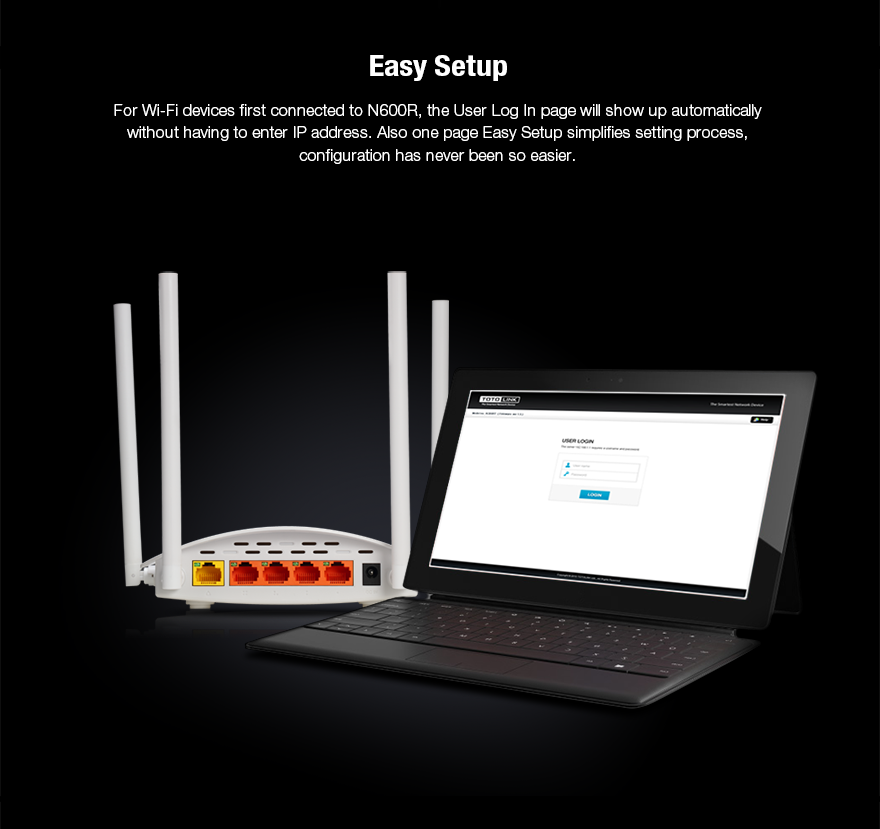

    - Easy Setup

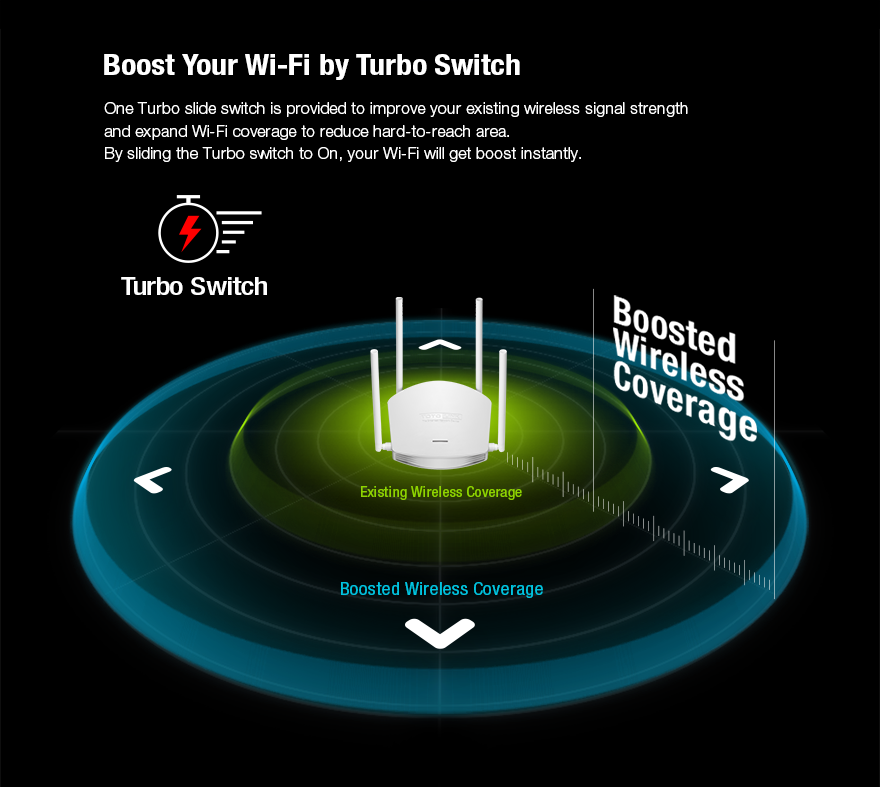

    - Boost Your Wi-Fi by Turbo Switch

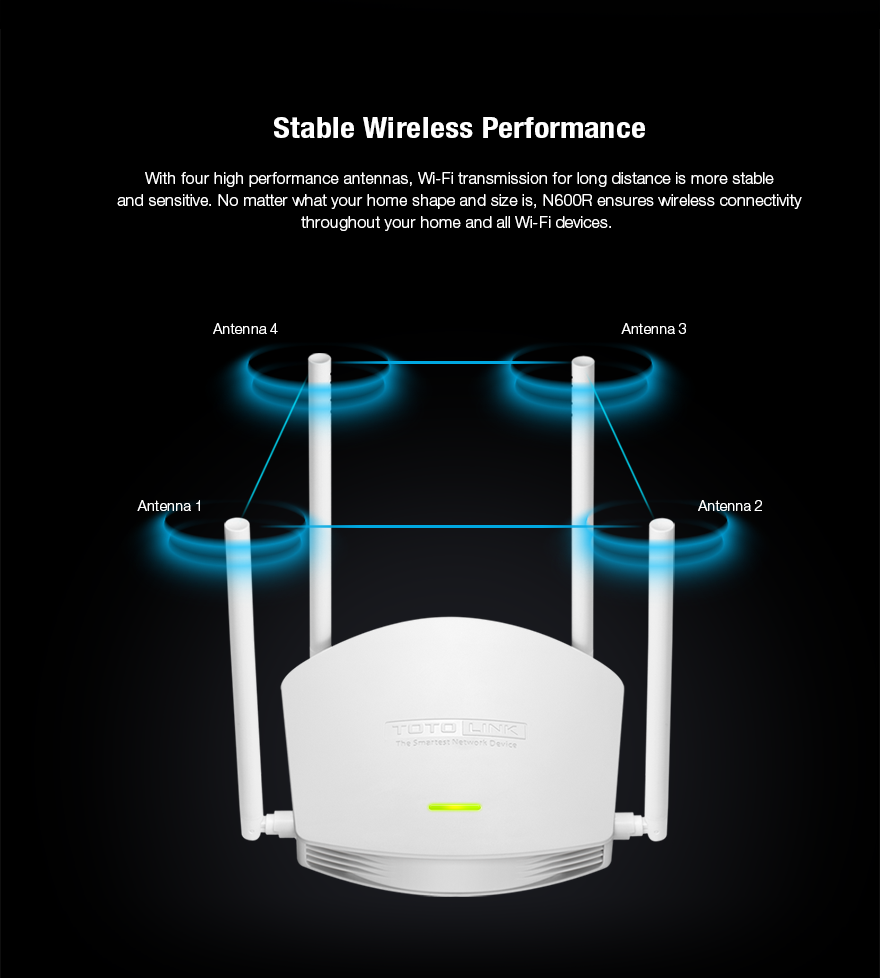

    - Stable Wireless Performance
  • Overviews
  • Features
  • Design
  • Tech Specs
  • Download
  • FAQs

    • - Complies with IEEE 802.11n/g/b standards for 2.4GHz Wireless LAN.

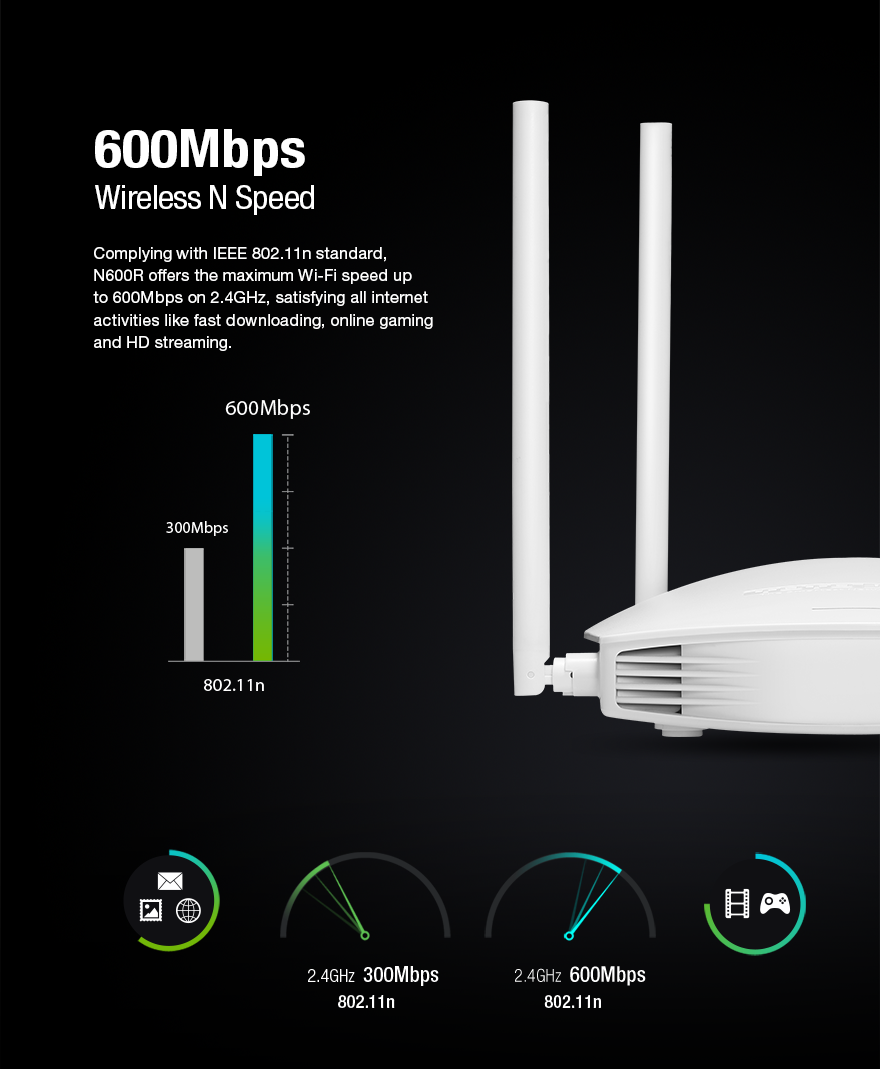

    - Up to 600Mbps data rate for Wi-Fi network.

    - Advanced MIMO technology enhances the throughput and wireless coverage.

    - One Turbo slide switch for easy and quick Wi-Fi coverage extension.

    - Supports  DHCP, Static IP, PPPoE, PPTP and L2TP broadband functions.

    - Provides 64/128-bit WEP, WPA, WPA2 and WPA-Mixed security.

    - Connects to secure network easily and fast using WPS. - Supports IP, Port, MAC, URL filtering and Port Forwarding.

    - QoS: bandwidth control based on IP.

    - Multi-SSID allows user to create multiple SSIDs according to their needs.

    - Universal repeater and WDS function for easy Wi-Fi extension.

    HARDWARE FEATURES

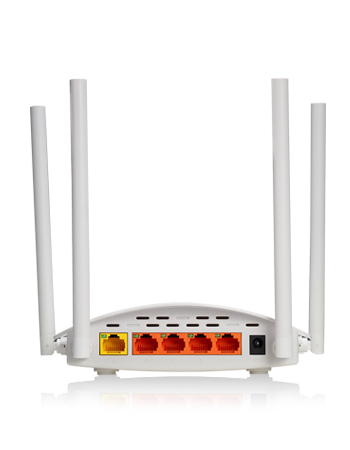

    Interface  4 *10/100Mbps LAN Ports
      1 *10/100Mbps WAN Port
    Power Supply  9V DC/0.8A
    Antenna  4 *5dBi fixed antennas
    Button  1 *RST/WPS Button, 1 *Turbo Slide Switch
    LED Indicators  1 *Status, 1 *WAN, 4 *LAN
    Dimensions(L x W x H)  6.7 x 5.4 x 1.6 in. (170.2 x 138.0 x 40.6 mm)
    WIRELESS FEATURES
    Standards  IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
    RF Frequency  2.4~2.4835GHz
    Data Rate  802.11n: Up to 600Mbps
      802.11g: Up to 54Mbps (dynamic)
      802.11b: Up to11Mbps (dynamic)
    EIRP  < 20dBm
    Wireless Security  64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
    Reception Sensitivity  11n HT20 MCS7: -68 dBm@10% PER
      HT40 MCS7: -65 dBm@10% PER
      11g 54M: -72 dBm@10% PER
      11b 11M: -85 dBm@8% PER
    SOFTWARE FEATURES
    WAN Type  DHCP/Static IP/PPPoE/PPTP/L2TP
    Wireless Functions  Multiple APs, Repeater Setting, MAC Authentication, WDS, WPS
    Schedule  Reboot Schedule, Wireless Schedule
    QoS  QoS Setup, Connect Limit Control
    Firewall  MAC Address Filtering, IP/Port Filtering, URL Filtering,
      Port Forwarding, VPN Passthrough, DMZ Setting
    Management  DDNS Setting, Time Setting, Remote Management, System Log,
      Upgrade Firmware, System Configuration,
    Others  -
    Package Contents  N600R Wireless Router *1
      Power Adapter *1
      Ethernet Cable *1
      Quick Installation Guide *1
    Environment  Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
      Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
      Operating Humidity: 10%~90% non-condensing
      Storage Humidity: 5%~90% non-condensing
