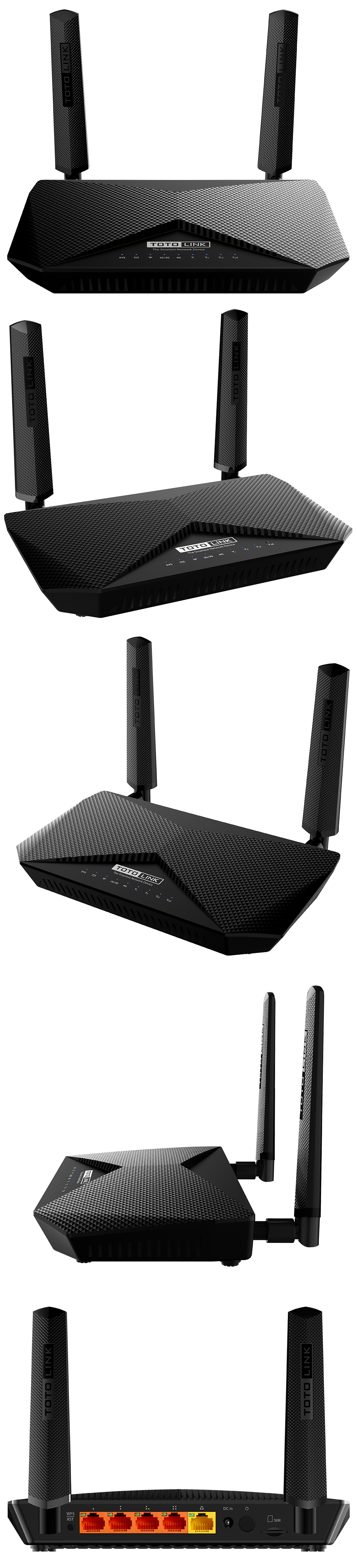

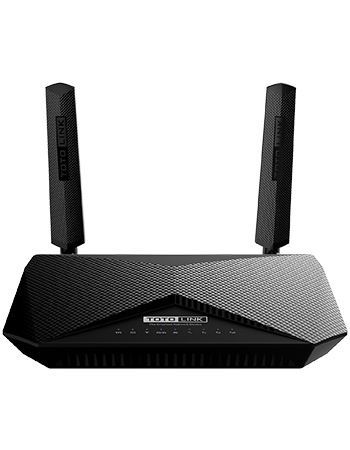

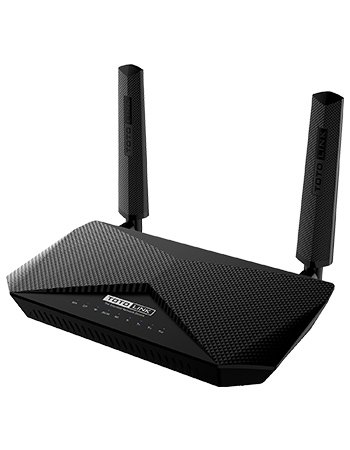

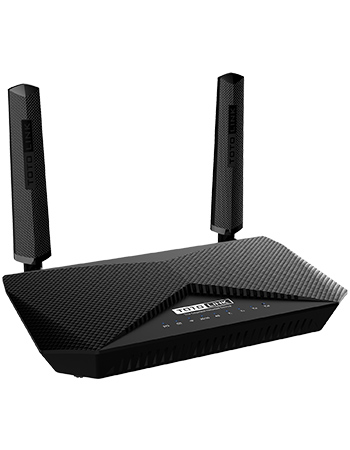

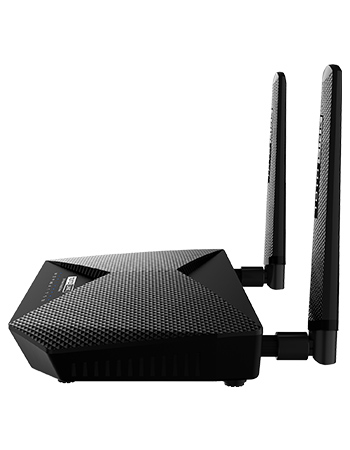

LR1200

AC1200 Wireless Dual Band 4G LTE Rout

  • - Superfast 4G LTE Speed & Simultaneous Dual Band WI-FI
    - Design for Maximum Network Coverage
    - Plug and Play without configuration
    - Flexibility WAN network connect design



  • Overviews
  • Features
  • Design
  • Tech Specs
  • Download
  • FAQs
    • - Complies the IEEE 802.11ac/a/b/g/n standards.
    - Convenient 4G network access, share your 4G LTE network with multiple Wi-Fi devices and achieves download speeds of up to150Mbps and upload speeds of up to 50Mbps.
    - Creates a simultaneous dual band Wi-Fi network ,with maximum speeds of up to 300Mbps on the 2.4GHz band and 867Mbps on the 5GHz band.
    - Powerful , integrated antennas provide stable wireless connections and better coverage.
    - Supports the TDD-LTE，FDD-LTE,TD-SCDMA, WCDMA,CDMA2000,1xEV-DO,GSM,GPRS,EDGE network type.
    - Requires no configuration ,just  insert a SIM card and turn it on to enjoy a fast wireless connection.
    - Provides WPA/WPA2 Mixed security.
    - Supports IP, MAC, URL filtering , Port Forwarding and DMZ
    - Supports high standard of 8KV/15KV ESD protection.
    Hardware

    Interface

    - 1 * 10/100M WAN Port (With LED)

    - 4 * 10/100M LAN Port(With LED)

    - 1 * Standard SIM card slot

    - 1*DC jack

    Power Supply

    - 12VDC/1A

    Button

    - 1 * RST/WPS Button

    - 1 * Power On/Off Button

    LED Indicator

    - 1 * Sys,

    - 1 * SMS,

    - 1 * WIFI,

    - 1 * 2G/3G,

    - 1 * LTE,

    - 4*Signal

    Antenna

    - 2 * 5dBi internal antennas (2.4/5GHz),

    - 2 * 5dBi detachable antennas (4G)

    Dimensions(L x W x H)

    - 21*12*4cm (excluding antennas)
    Wireless
    Standards

    - IEEE 802.11ac,
    - IEEE 802.11a,
    - IEEE 802.11b,
    - IEEE 802.11g,
    - IEEE 802.11n
    RF Frequency

    - 2.4GHz/5GHz
    Data Rate

    - 2.4GHz: Up to 300Mbps

    - 5GHz: Up to 867Mbps

    EIRP

    - 2.4GHz < 20dBm
    - 5GHz < 20dBm

    Wireless Security

    - WPA/WPA2 Mixed
    Reception Sensitivity

    - 2.4G:

      11b 11M：-81dBm@8% PER

      11g 54M：-68dBm@10% PER

      11n HT20 MCS7：- 65dBm@10% PER&

             HT40 MCS7：- 62dBm@10% PER

    - 5G:

      11a 54M：-68dBm@10% PER

      11n HT20 MCS7：- 65dBm@10% PER

             HT40 MCS7：- 62dBm@10% PER

      11ac VHT80 MCS9：-51dBm@10% PER
    LTE Mode

    LTE chip(PCIe, optional, customizable)

    - Qualcomm MDM9x07

    LTE Network Type and Band (1)

    - 4G: TDD-LTE B38/B39/B40/B41, FDD-LTE B1/B3/B5/B8, TD-SCDMA B34/B39

    - 3G: WCDMA B1/B8, CDMA2000 1X/EVDO BC0

    - 2G: GSM B3/B8

    LTE Network Type and Band (2)

    - 4G: LTE FDD B1/B3/B5/B7/B8/B20, LTE TDD B38/B40/B41

    - 3G: WCDMA: B1/B5/B8

    - 2G: GSM B3/B8

    LTE Network Type and Band (3)

    - 4G: LTE FDD B1/B2 /B3/B4/B5/B7/B8/B28, LTE TDD B40

    - 3G: WCDMA: B1/B2/B5/B8

    - 2G: GSM B2/B3/B5/B8
    Software

    Home State

     - WAN information,

    - LAN information,

    - System information

    WAN Type

    - Static IP,

    - DHCP,

    - PPPoE,

    - 4G

    Wireless Functions

    - Multiple SSIDs,

    - MAC Authentication,

    - WPS

    Firewall

    - MAC Filtering,

    - IP/Port Filtering,

    - URL Filtering,

    - DMZ

    Management

    - Password,

    - System Config,

    - Time Setup,

    - Firmware update,

    - System Log

    Device  capacity

    - 2.4G:  Max 32 users

    - 5G:  Max 32 users
    Others
    System Requirements

    - Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS,

    - NetWare®, UNIX® or Linux.

    Package Contents

    - LR1200 Wireless Router * 1

    - Power Adapter * 1

    - Ethernet Cable * 1

    - SIM Adapter (Nona, Micro)

    - Quick Installation Guide * 1

    Environment

    - Operating Temperature: 0℃~50 ℃ (32 ℉~122℉)

    - Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)

    - Operating Humidity: 10%~90% non-condensing

    - Storage Humidity: 5%~90% non-condensing
