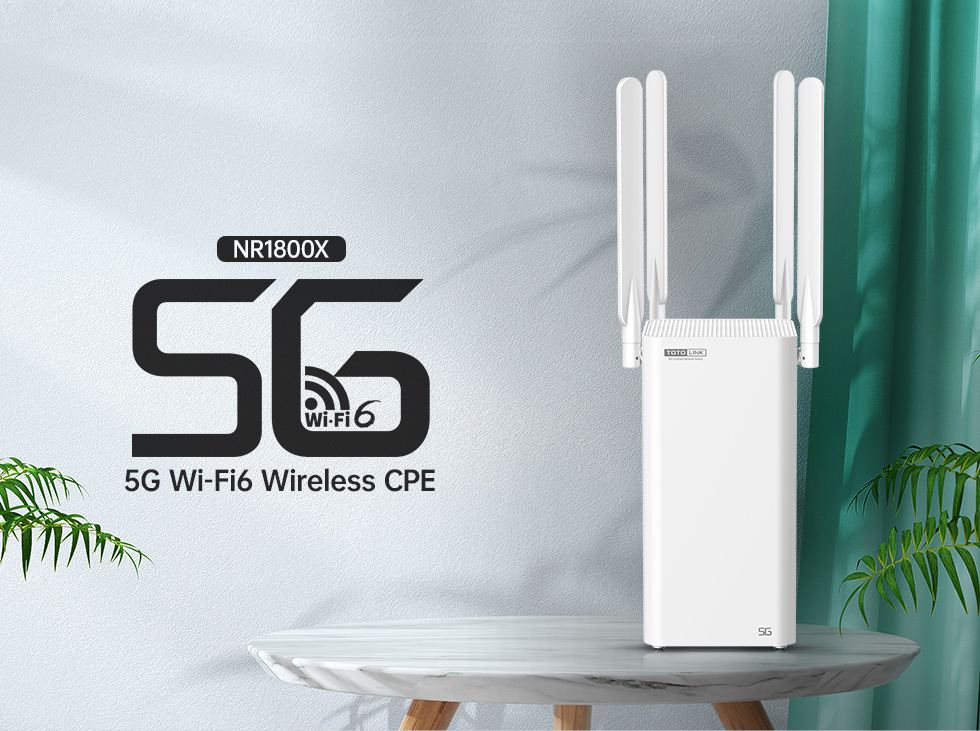

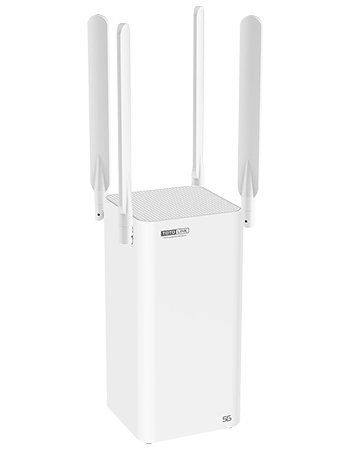

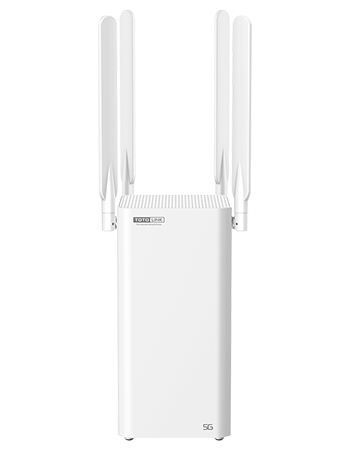

NR1800X

5G Wi-Fi6 Wireless CPE

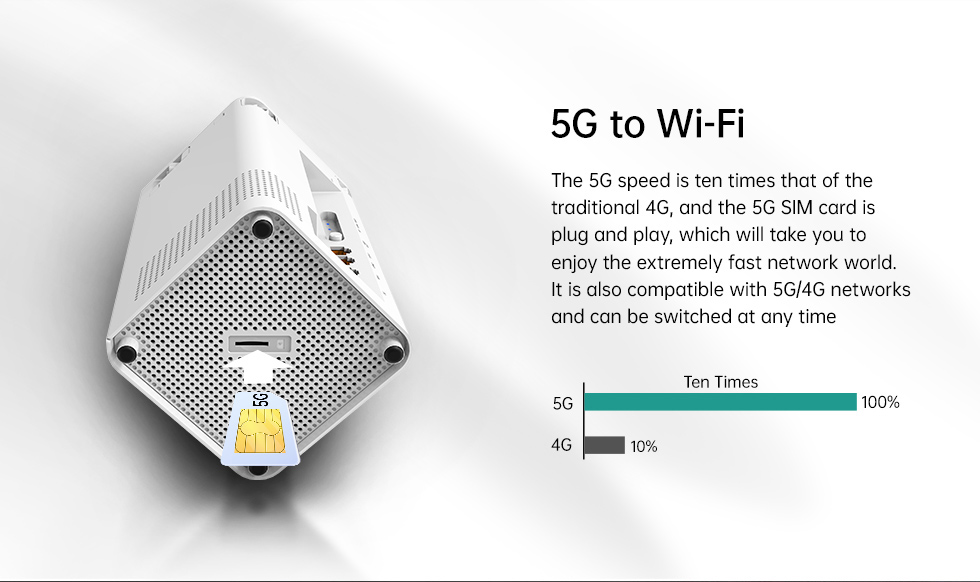

  • - 5G to Wi-Fi

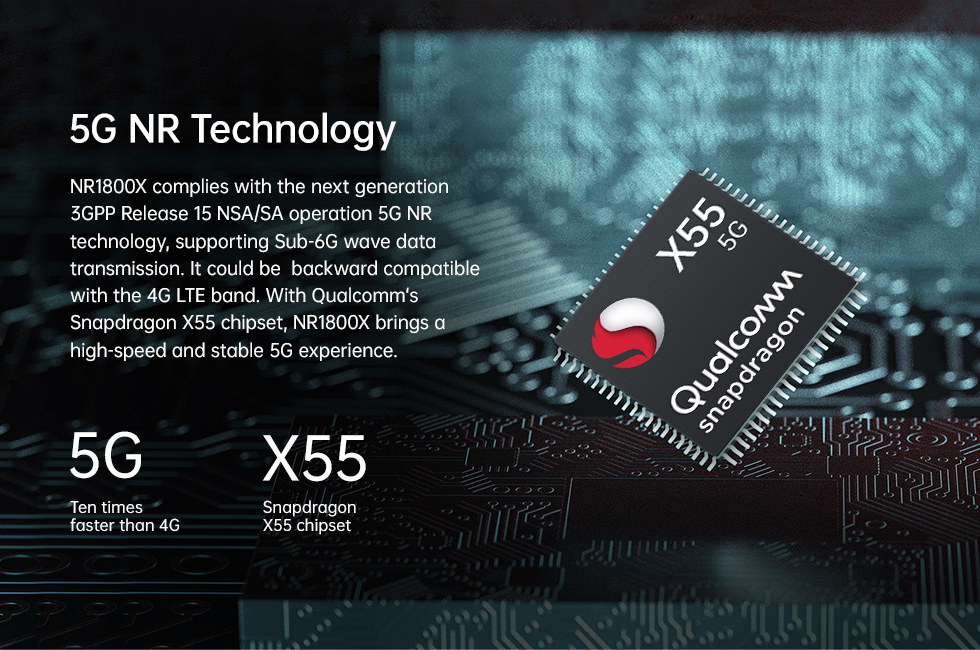

    - 5G NR Technology

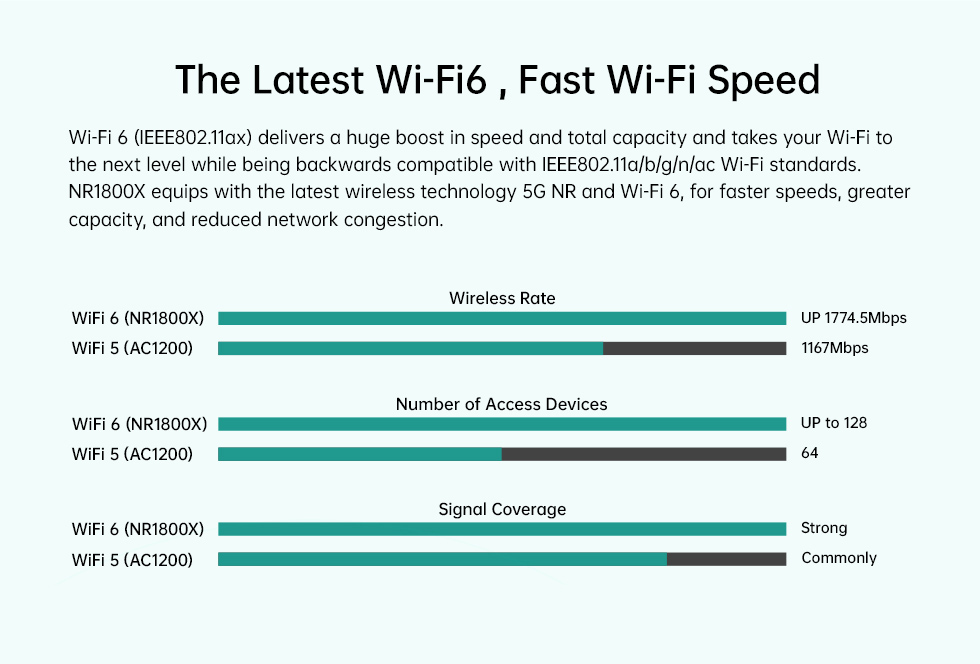

    - The Latest Wi-Fi6 , Fast Wi-Fi Speed

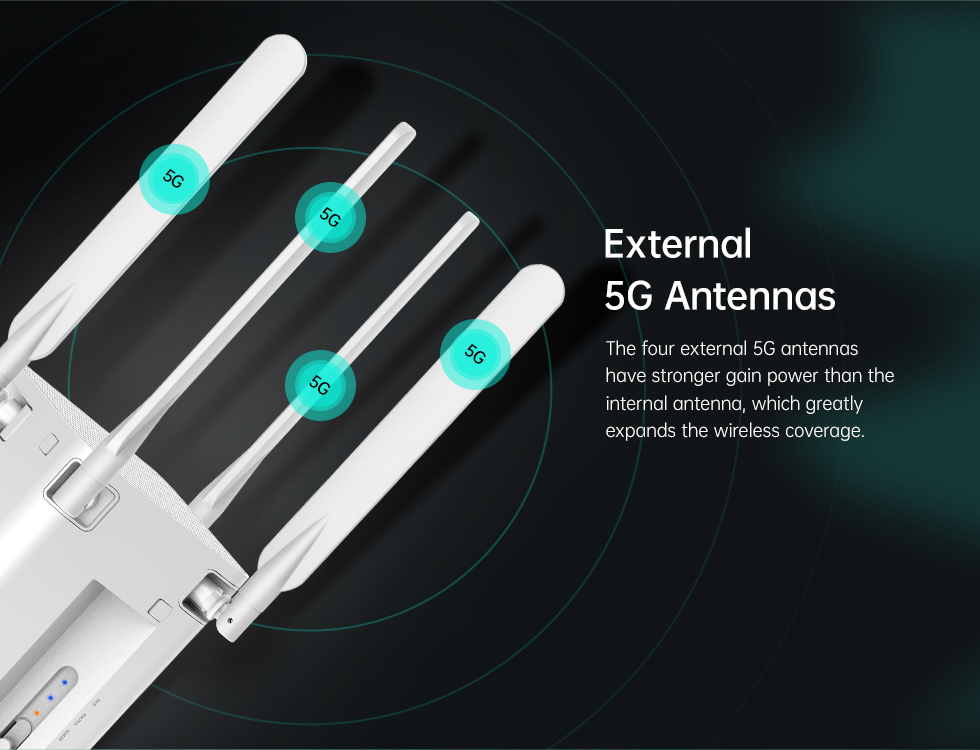

    - External 5G Antennas

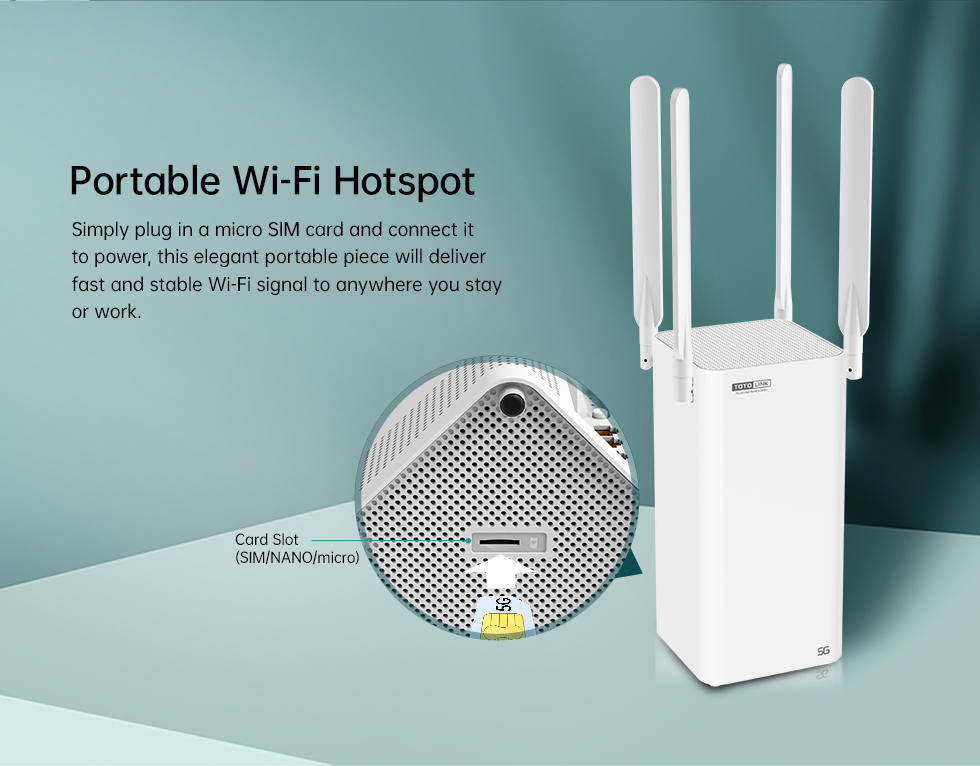

    - Portable Wi-Fi Hotspot

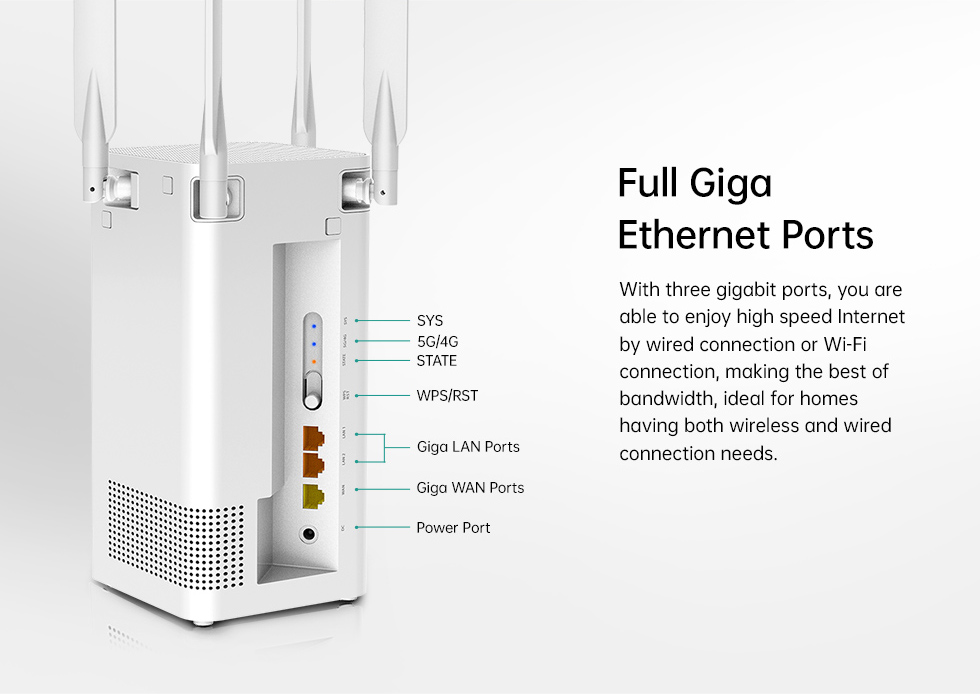

    - Full Giga Ethernet Ports
    - Wider Wi-Fi Coverage
    - Support Max. 128 Users Simultaneously
  • Overviews
  • Features
  • Design
  • Tech Specs
  • Download
  • FAQs
    • - Complies with the next generation 3GPP Release 15 NSA/SA operation 5G NR technology and  the next generation Wi-Fi 6
      (IEEE 802.11ax) standard
    - 5G NR 5G NR transmission rate is 10X faster than the 4G CAT4 rate.
    - 1,201Mbps on 5GHz and 573.5Mbps on 2.4GHz band provides total 1,774.5Mbps simultaneously.
    - Middle power design on both bands is perfect for long distance wireless transmission.
    - Portable 5G/4G Wi-Fi Hotspot brings great convenience to users.
    - Plug an Ethernet cable into the LAN/WAN port for flexible access as a backup option if you can't get a 4G connection.
    - MU-MIMO technology allows data transmission to multiple devices at the same time.
    - Three gigabit ports ensure high speed wired and wireless connection.
    - Intuitive Web UI and APP ensures quick and simple installation.
    - OFDMA to improve capacity and efficiency of your network, so more devices can connect without slowing down your Wi-Fi.
    - TWT (Target Wake Time) technology reduces your devices' power consumption to extend their battery life.
    - Support Max.128 devices simultaneously.

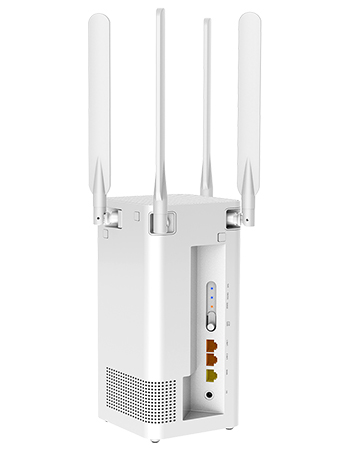

    Hardware
    Interface
    - 2*1000Mbps LAN Ports
    - 1*1000Mbps WAN Port
    Power Supply
    - 12V DC/2A
    Antenna
    - 2 * external dual band Wi-Fi +5G/4G antennas
    - 2*  external 5G/4G antennas
    Button

    -  1*Reset/WPS
    - 1*DC/IN
    LED  Indicators

    - 1 *SYS(Orange)
    - 1 *5G/4G Status(Blue/orange)
    - 1 *5G/4G signal(Blue/orange)
    Dimensions(L x W x H)
    - 110 x 110 x 225mm(not include the antennas)
    Wireless
    Standards
    - IEEE 802.11ax, IEEE 802.11ac, IEEE 802.11n,
    - IEEE 802.11g, IEEE 802.11b, IEEE 802.11a
    RF Frequency
    - 2.4~2.4835GHz
    - 5.18~5.825GHz
    Data Rate
    - 2.4GHz: Up to 574Mbps (2*2 40MHz)
    - 5GHz: Up to 1201Mbps (2*2 80MHz)
    EIRP
    - 2.4GHz < 22dBm
    - 5GHz < 20dBm
    Wireless Security
    - 64/128-bit WEP, WPA, WPA2 and WPA-Mixed
    - WPA3
    Reception Sensitivity

    - 2.4G: 11b: <-85dbm;
                11g: <-72dbm;
                11n: HT20<-68dbm  HT40: <-65dbm
    - 5G: 11a:<-72dbm;
             11n: HT20<-68dbm  HT40: <-65dbm
             11ac: <-55dbm
             11ax VHT80 : <-46dbm      11ax VHT160 : <-43dbm
    5G NR
    5G NR chip(M.2, optional, customizable)
    - Qualcomm X55
    5G NR Band
    - 5G NR: N41/N77/N78/N79
    LTE Network Type and Band
    - 4G: LTE-FDD: B1/B3/B5/B7/B8/B18/B19/B20/B26/B28
            LTE-TDD: B34/B38/B39/B40/B41/B42/B43

    Software
    Home
    - Quick Setup
    - Basic setup
    - Advanced setup
    - Logout
    - Reboot
    5G NR Band
    - 5G NR: N41/N77/N78/N79
    WAN Type
    - 4G: LTE-FDD: B1/B3/B5/B7/B8/B18/B19/B20/B26/B28
            LTE-TDD: B34/B38/B39/B40/B41/B42/B43
    Wireless
    - Basic setup
    - Parental Control
    QoS

    - Up/Down speed control on WAN,
    - Bandwidth control based on IP address
    Security - MAC Filtering
    - IP/Port Filtering
    - URL Filtering
    NAT

    - Virtual Server(Port Forwarding)
    - DMZ
    - VPN passthrough
    Tools
    - Upgrade Firmware
    - Time Setup
    - Remote management
    - Password Settings
    - Reboot Schedule
    - System Log and so on

    Others
    Package Contents
     -  5G Wi-Fi6  Wireless  CPE
     -  Quick Installation Guide
     -  Power Adapter
     -  Ethernet Cable
     -  Micro/Nano to Standard SIM Card Adapter
    Environment
     - Operating Temperature: 0℃~50 ℃ (32 ℉~122℉)
     - Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
     - Operating Humidity: 5%~95% non-condensing
     - Storage Humidity: 5%~95% non-condensing
