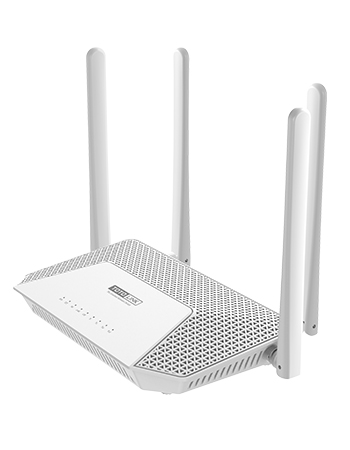

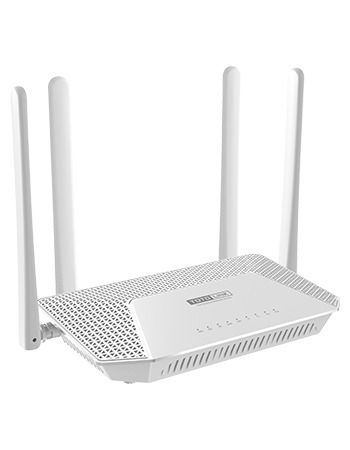

LR1200GW

4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router

  • - Superfast 4G+ LTE Speed & Simultaneous Dual Band WI-FI
    - Design for Maximum Network Coverage
    - Plug and play, Easy access
    - Flexibility WAN network connect design
    - 4 high-gain antennas, WiFi signal is stronger, 4G signal is better
    - Full Gigabit WAN and LAN Ports

  • Overviews
  • Features
  • Design
  • Tech Specs
  • Download
  • FAQs

    • - Complies the IEEE 802.11ac/a/b/g/n standards.
    - Supports 4G+ Cat6 to boost the data speeds of up to 300Mbps.
    - Creates a simultaneous dual band Wi-Fi network ,with maximum speeds of up to 300Mbps on the 2.4GHz band and 867Mbps on the 5GHz band.
    - MU-MIMO supported – simultaneous data streams increase WiFi throughput and network efficiency.
    - 4 high-gain antennas, WiFi signal is stronger, 4G signal is better.

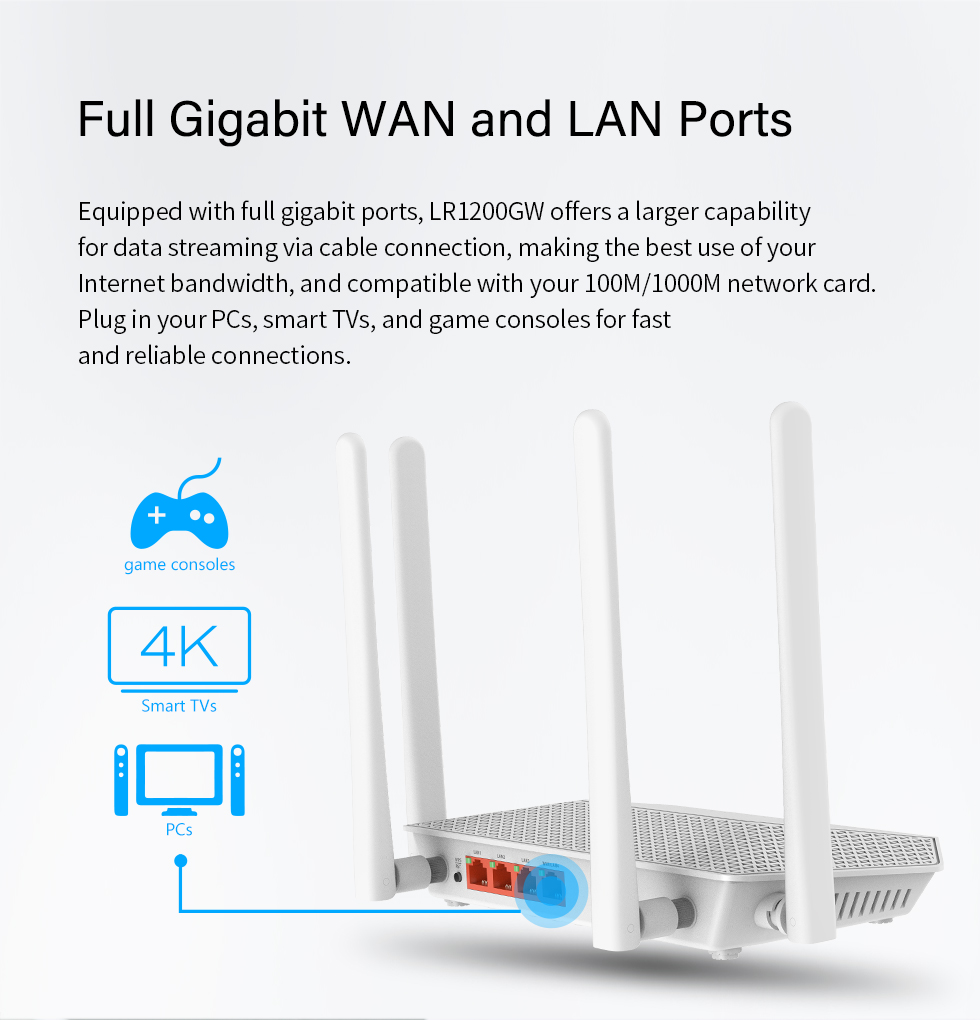

    - Full gigabit ports offer larger capability for data forwarding via cable connection.
    - Supports the LTE-FDD,LTE-TDD,WCDMA,GSM network type.
    - Requires no configuration ,just  insert a SIM card and turn it on to enjoy a fast wireless connection.
    - Provides 64/128-bit WEP, WPA, WPA2 and WPA/WPA2 encryptions.
    - Supports IP, MAC, URL filtering , Port Forwarding and DMZ
    - Supports high standard of 8KV/15KV ESD protection.
    - With built-in 4G SIM card slot, allowed to share 4G Wi-Fi with your simply by plugging one 4G SIM car.

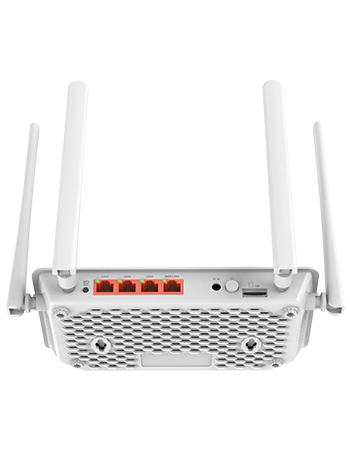

    Hardware

    Interface
    - 1 * 10/100/1000M WAN Port
    - 3 * 10/100/1000M LAN Port
    - 1 * Standard SIM card slot

    Power Supply
    - 12 VDC / 1A

    Button
    - 1 *WPS/RST Button

    LED Indicator
    - 1*LTE，1 *WIFI，1*WAN，3*LAN，1*Power

    Antenna
    - 2 * 5dBi internal antennas (2.4G),
    - 2 * 5dBi detachable antennas (4G LTE)

    Dimensions(L x W x H)

    - 195.5*126.9*28.6(mm)
    Wireless
    Standards

    - IEEE 802.11ac,
    - IEEE 802.11a,
    - IEEE 802.11b,
    - IEEE 802.11g,
    - IEEE 802.11n
    RF Frequency

    - 2.4GHz/5GHz
    Data Rate
    - 2.4GHz: Up to 300Mbps
    - 5GHz: Up to 867Mbps

    EIRP
    - 2.4GHz < 20dBm

    Wireless Security
     - 64/128-bit WEP, WPA and WPA2
    Reception Sensitivity
    - 2.4G:11b 11M：-81dBm@8% PER
               11g 54M：-68dBm@10% PER
               11n HT20 MCS7：-65dBm@10% PER
                     HT40 MCS7：-62dBm@10% PER

    - 5G: 11a 54M：-68dBm@10% PER
             11n HT20 MCS7：-65dBm@10% PER
                    HT40 MCS7：-62dBm@10% PER
             11ac VHT80 MCS9：-51dBm@10% PER
    LTE Mode
    LTE chip(miniPCIE, optional, customizable)
    - Qualcomm
    LTE Network Type and Band (1)
    - FDD: B1/B3/B5/B7/B8/B20/B28/B32
    - TDD: B38/B40/B41
    - WCDMA: B1/B3/B5/B8

    LTE Network Type and Band (2)
    - FDD: B1/B3/B5/B8
    - TDD: B34/B38/B39/B40/B41
    - WCDMA: B1/B5/B8
    - GSM: 900/1800
    Software

    Home State

    - WAN information,

    - LAN information,

    - System information

    WAN Type

    - Static IP,

    - DHCP,

    - PPPoE,

    - 4G

    Wireless Functions

    - Multiple SSIDs,

    - MAC Authentication,

    - WPS

    Firewall

    - MAC Filtering,

    - IP/Port Filtering,

    - URL Filtering,

    - DMZ

    Management

    - Password,

    - System Config,

    - Time Setup,

    - Firmware update,

    - System Log

    Device  capacity
     - 2.4G:  Max 64 users
     - 5G:  Max 64 users
    Others

    Package Contents
    - LR1200GW Wireless Router * 1
    - Power Adapter * 1
    - Ethernet Cable * 1
    - SIM Adapter (Nona, Micro)
    - Quick Installation Guide * 1

    Environment

    - Operating Temperature: 0℃~50 ℃ (32 ℉~122℉)
    - Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
    - Operating Humidity: 10%~90% non-condensing
    - Storage Humidity: 5%~90% non-condensing
